MA1104 - Phase Annuli Plate Top for Phase Objectives for MT-B100 and MT-B300 Models

MA1104 Info:

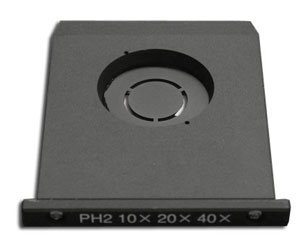

Phase annuli plate top slide for phase objectives 10X, 20X, and 40X for MT-B100 and MT-B300 models

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight:  Less than 1lb
   • Box Size: 8" x 8" x 4"

The MT-B100 Digital Imaging Microscope System is Meiji Techno’s new Digital Brightfield/ Phase Contrast microscope system

Easy installation: No Alignment, No Calibration and Minimal Assembly

Slide capacity : One slide

Fixed objective : 4X, 10X, 20X, 40X (Replaceable)

Focusing : Front Manual Control

Camera: On Board built in USB 3.0, 1.3MP CMOS Digital Camera

Software:  Basler Pylon Software which can be easily downloaded.  It connects easily to any PC or laptop with a USB 3.0 connection.

Size: Compact footprint design ( 160 mm (W) x 270 mm (D) x 230 mm (H) )

Turret: Replaceable fixed one objective turret with a front focus control to easily bring a slide into focus.  Illumination: A 3W integrated LED illumination with an auto voltage sensing power supply ( AC100V to 240V, 50Hz/ 60Hz).

OPTIONAL SLIDE HOLDER:

Slide Holder:  It accommodates one slide with an optional attachable manual mechanical stage.  Controls to switch from one modality to the next is conveniently located on the side for easy access.

OPTIONAL MECHANICAL STAGE (Recommended)

MA1085: Attachable mechanical Stage, movement 60mm (X) x 30mm (Y) with Left hand drop-down X-Y slide controls for the Meiji Techno Digital models: MT-B100, MT-B200, MT-B300 models

OPTIONAL OBJECTIVES:

________________________________________________________________________________________________________________________

The MT-B300 Digital Imaging Microscope is Meiji Techno’s new Digital Brightfield/ Phase Contrast/ Fluorescence microscope system

Easy installation: No Alignment, No Calibration and Minimal Assembly

Slide capacity : One slide

Fixed objective : 4X, 10X, 20X, 40X (Replaceable)

Focusing : Front Manual Control

Camera: On Board built in USB 3.0, 1.3MP CMOS Digital Camera

Software:  Basler Pylon Software which can be easily downloaded.  It connects easily to any PC or laptop with a USB 3.0 connection.

Size: Compact footprint design ( 160 mm (W) x 270 mm (D) x 230 mm (H) )

Turret: Replaceable fixed one objective turret with a front focus control to easily bring a slide into focus.  Illumination: A 3W integrated LED illumination with an auto voltage sensing power supply ( AC100V to 240V, 50Hz/ 60Hz.)

OPTIONAL MECHANICAL STAGE (Recommended)

MA1085: Attachable mechanical Stage, movement 60mm (X) x 30mm (Y) with Left hand drop-down X-Y slide controls for the Meiji Techno Digital models: MT-B100, MT-B200, MT-B300 models

OPTIONAL FLUORESCENCE  FILTERS:

MA879/05: Basic Blue CHROMA (19002) filter- AT-GFP/FITC Longpass mounted in Meiji Filter cube: Exciter (EX) : AT480/30x, Dichroic (BS): AT505DC, Emitter (EM): AT515lp

Chroma’s 19002 AT-GFP/FITC longpass filter set is similar to the 39002 Series AT Sputtered single band filter set but use longpass emission filter with a cut-on wavelength at 515nm instead of a bandpass emission filter.

Features
?  Filters include in this set: AT480/30x (EX), AT505DC (BS), AT515lp (EM)

?  Round excitation and emission filters mounted in anodized aluminum rings 2.3-5.0mm thick, up to 25mm in diameter

?  Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Benefits
?  19002 AT-GFP/FITC longpass filter set is best with these fluorochromes: Acridine Orange + DNA and RNA, Auramine-rhodamine, JC-1 non-ratiometric

https://www.chroma.com/products/sets/19002-at-gfp-fitc-longpass#tabs-detail_page_plot-left-1

MA880/05: Basic Green CHROMA (19004) filter-AT-TRITC/Cy3 Longpass mounted  in Meiji Filter cube : Exciter (EX): AT540/25x, Dichroic (BS): AT565DC, Emitter (EM) : 575lp

Chroma’s 19004 AT-TRITC/Cy3 longpass filter set is similar to the 39004 series AT sputtered single band filter set but use longpass emission filter with a cuto-on wavelength at 575nm instead of bandpass emission filter

Features
?  Filters include in this set: AT540/25x (EX), AT565DC (BS), AT575lp (EM)

?  Round excitation and emission filters mounted in anodized aluminum rings 2.3-5.0mm thick, up to 25mm in diameter

?  Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Benefits
?  19004 AT-TRITC/Cy3 longpass filter set is best with this fluorochrome: R-phycoerythrin

https://www.chroma.com/products/sets/19004-at-tritc-cy3-longpass

MA881/05: Basic UV CHROMA (39000) filter – AT-DAPI/ Hoechst/ Alexa Flour 350 mounted in Meiji Filter cube: Exciter (EX): AT375/28x, Dichroic (BS): AT415DC, Emitter (EM) AT460/50m

Chroma’s 39000 series consists of our standard AT sputtered bandpass filter sets. These affordably priced filter sets provide the same durability and longevity as our premium ET filter sets, with transmission levels >90%, and are covered by Chroma’s lifetime warranty.  AT filter sets are the perfect choice for routine fluorescence detection and assays, and for most applications requiring accurate color discrimination and excellent out-of-band blocking. For zero-pixel-shift image registration, and for applications requiring the highest possible signal intensities, please refer to our ET filters.

Features
?  Filters include in this set: AT540/25x (EX), AT565DC (BS), AT575lp (EM)

?  Round excitation and emission filters mounted in anodized aluminum rings 2.3-5.0mm thick, up to 25mm in diameter

?  Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes

Benefits
?  39000- Chroma filter – AT-DAPI/ Hoechst/ Alexa Flour 350

https://www.chroma.com/products/sets/39000-at-dapi-hoechst-alexafluor-350

OPTIONAL OBJECTIVES:

Application: This Digital microscope is designed for laboratories that do routine volume slide scanning with particular objective and want to digitize every slide seen for documentation for the patient digital file.  It also saves the laboratory or hospital valuable time from sending their slides to third parties inspection labs, which often times are lost or the quality of the slide degrades from temperature or shipping mishaps.  Ultimately saving the pathologist or lab technician time in their diagnosis.

The MT-B Digital Microscope Series is Meiji Techno’s new Digital Brightfield/ Phase Contrast/ Fluorescence microscope systems.

MT-B100 - Brightfield/Phase Contrast
MT-B200 - Brightfield/Fluorescence
MT-B300 - Brightfield/ Phase Contrast/ Fluorescence

Easy installation: No Alignment, No Calibration and Minimal Assembly

Camera: On Board built in USB 3.0, 1.3MP CMOS Digital Camera

Software:  Basler Pylon Software which can be easily downloaded.  It connects easily to any PC or laptop with a USB 3.0 connection.

Size: Compact footprint design (160 mm (W) x 270 mm (D) x 230 mm (H) )

Turret: Replaceable fixed one objective turret with a front focus control to easily bring a slide into focus.  Illumination: A 3W integrated LED illumination with an auto voltage sensing power supply ( AC100V to 240V, 50Hz/ 60Hz.)

COMPONENTS AND ACCESSORIES OF MT-B SERIES

• MA1085: Attachable mechanical stage with 60mm (X) x 30mm (Y) with left hand drop down X– Y slide controls for Meiji Techno Models: MT-B100, MT-B200, MT-B300 models. (Attaches easily on left side of)

FLUORESCENCE OBJECTIVES
• MA850: TC Planachromat F10X objective ∞/1.0 N.A. 0.30, F.L. 20.0, W.D. 7.50
• MA851: TC Planachromat F20X objective ∞/1.0 N.A. 0.40, F.L. 10.0, W.D. 7.50
• MA852: TC Planachromat F40X objective ∞/1.0 N.A. 0.60, F.L. 5.00, W.D. 2.90

PHASE OBJECTIVES
•  MA826: TC LWD Planachromat Phase 10X objective ∞/1.0 N.A. 0.25, F.L. 20.0, W.D. 7.60
•  MA827: TC LWD Planachromat Phase 20X objective ∞/1.0 N.A. 0.40, F.L. 10.0, W.D. 7.00
•  MA828: TC LWD Planachromat Phase 40X objective ∞/1.0 N.A. 0.65, F.L. 5.00, W.D. 2.80

PHASE ACCESSORIES
• MA1104: Phase slider for Top insert slot for MT-B100 and MT-B300 models

DUST COVER
•  MA703: Dust cover for EM stereos
