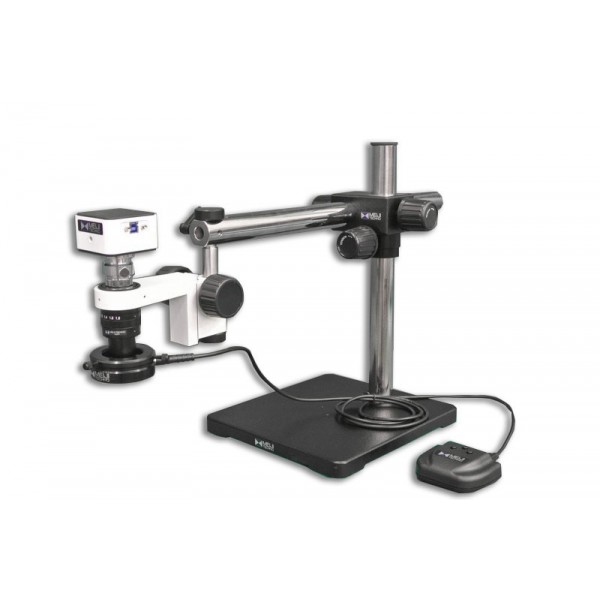

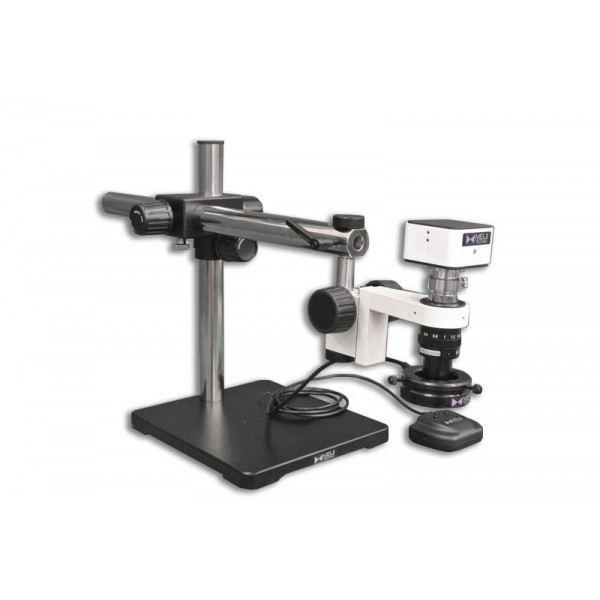

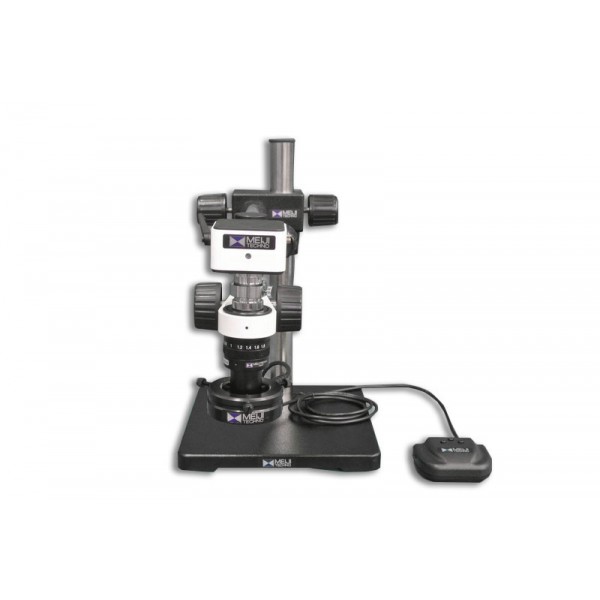

MS-40D + MS-51/05 + S-1100 + MA951D/30 + HD2500T Info:
MS-40D Info:
Short Unimac Macrozoom Lens 0.28X - 1.8X with C" mount adapter, working distance 94mm
|
Model
|
Description
|
Zoom Ratio
|
Working Distance
|
|
MS-35 (DISCONTINUED) |
0.22X-1.4X with "C" Mount Adapter | 6.4 to 1 | 173mm |
|
MS-35D (DISCONTINUED) |
0.22X-1.4X with "C" Mount Adapter with Detent | 173mm | |
|
MS-40 (DISCONTINUED) |
0.28X-1.8X with "C" Mount Adapter | 94mm | |
|
MS-40D |
0.28X-1.8X with "C" Mount Adapter with Detent | 94mm | |
|
MS-45 (DISCONTINUED) |
0.41X-2.6X with "C" Mount Adapter | 94mm | |
|
MS-45D |
0.41X-2.6X with "C" Mount Adapter with Detent | 94mm | |
|
MS-50 (DISCONTINUED) |
0.7X-4.5X with "C" Mount Adapter & | 94mm | |
|
MS-50R |
0.7X-4.5X with "C" Mount Adapter with Iris | 94mm | |
|
MS-50D |
0.7X-4.5X with "C" Mount Adapter with Detent | 94mm | |
|
MS-50DR |
0.7X-4.5X with "C" Mount Adapter with Detent & Iris | 94mm |
NOTE: Short UNIMAC Detent lenses provide discrete detent positions in zoom travel. The discrete detent positions allow the end user to make exact system calibrations with repeatability of ±03% error.
MS-51/05 Info:
Coarse focus block that fits 20mm mounting post of pole stands and boom stands
S-1100 Info:
• Stand Type: Boom Stand
• Vertical Post Height: 384mm
• Maximum Vertical Post Extended Length: 254mm
• Vertical Post Diameter: ?37.2mm
• Cross Adapter Type: Cross Hole Adapter
• Horizontal Arm Type: Horizontal Post
• Horizontal Arm Length: 544mm
• Horizontal Diameter: ?37.2mm
• Mounting Hole on the Top of Horizontal Arm: 5/8" End Adapter
• Horizontal Rotation Angle: 360 degree rotatable
• Horizontal Arm Travel Distance on Z-Axis: 266mm
• Horizontal Arm Strech Range: 480mm
• Horizontal Arm Maximum Load: 9.5kg (20.94lbs)
• Horizontal Arm Travel Mode on Horizontal Direction: Manual
• Horizontal Arm Travel Mode on Z Direction: Manual
• Base Type: Heavy Duty Base
• Base Shape: Rectangle
• Base Dimensions: 285mm x 260mm x 15mm
• Surface Treatment: Electroplating Black
• Material: Metal
• Color: Black
• Net Weight: 18.14kg (39.99lbs)
• Dimensions: 285mm x 260mm x 600mm (11.220" x 10.236" x 23.62")
MA951D/30 Info:
The MA951D/30 model is carefully constructed by starting with an alluminum alloy that is precision machined. This unit has a 44mm opening and is specifically designed to fit onto zoom and fxed optics commonly used for machine vision and automated imaging applications. An auto voltage sensing 100 – 240 VAC power supply is included.
Key Specifications:
• 44mm inner diameter
• 30 inddividual LEDs
• Daylight color temperature
• Auto Voltage Sensing Power Supply
• 3 banks
• Standard Working Distance
• Remote Control not Available
HD2500T Camera Info:
The HD2500T is our full featured 5 MP camera with a 2/3” CMOS chip Color Camera . A 0.7X C-mount adapter (MA151/35/20) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD2500T features a full (2448 (H) x 2048 (V) resolution, which provides high fidelity images with a refresh rate of 35fps@ 5MP frames per second when connected via USB 3.0 , so there is absolutely no lag in the live video feed when moving your specimen or part. Shutter Mode is Global.
Specifications:
| Product Model | HD2500T |
| Sensor Model | IMX264LQR-C |
| Sensor Type | CMOS |
| Sensor Size | 2/3" |
| Color/Mono | Color |
| Pixel Size | 3.45 x 3.45 (µm) |
| Resolution | 2448(H) x 2048(V) |
| Frame | 35fps@5MP |
| Shutter Mode | Global |
| Exposure Time | 0.13ms-15s |
| Automatic Set | Exposure, Color Scale, White Balance |
| Manually Set | Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction |
| Color Temperature | 2000-15000K |
| ADC Depth | 12Bit |
| PC Software | Mosaic V 2.0 |
| Picture Format | JPG/PNG/TIFF |
| Operating System | Windows/Linux/Mac |
| Multiple Cameras | Supports 4 Cameras Simultaneously |
| Data Interface | USB 3.0 |
| Optical Interface | Standard C Mount |
| Camera Size | 68 mm x 68 mm x 46 mm |
| Camera Weight | 330g |
| Operating Temperature | 0-60°C |
Software Feature Function:
• Intelligent 12-bit ISP color reproduction
• Real-time depth of field fusion
• Real-time image stitching
• Real-time fluorescence image synthesis and editing
• HDR image systhesis
• Micro-imaging-based intelligent automatic exposure
• Smart measurement workflow
• Implements multiple iterations of workflow execution
• Supports single shot, integral camera, delayed camera
• Automatic video and delay video generation
• Output format selection
• User parameter group save and load
• Dynamic/ static measurement, layered measurement
• Supports measuring gauges, layers, precision, naming, style
• Implements drawng: points, lines, rectangles, polygons, circles, arcs, angle
• Data export as TXT or Excel
• Report generation and printing
Camera Size
68 x 68 x 46mm
Camera Weight
330 g
Product Information:
• Manufactured: 100% MADE IN JAPAN
• MA951D/30 Manufactured: 100% MADE IN USA
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
Packaging Information
• Weight: ~13lbs
• Box Dimensions: 19" x 15" x 9"
• Weight for Stand Alone: 40lbs
• Box Dimensions for Stand: 19.68" x 15.7" x 6.6"
The Short UNIMAC Series features include:
Short UNIMAC Macroscopes:
Short UNIMAC Series (Short-Back Focus) is a high performance direct-to-camera zoom lens system offer a wide array of features making them perfect for industrial, medical, educational and research applications. The Short UNIMAC series of macrozoom lenses couples directly to a CCD or CMOS video camera and allows a shorter profile facilitating use in situations where space is very restricted. These versatile modular lens systems are ideally suited for a variety of free standing or OEM applications. Compatible with digital or analog CCD and CMOS cameras.
Superb optical quality and mechanical flexibility allow the user to cover a wide spectrum of viewing needs. A variety of auxiliary lenses, focus blocks, illumination systems, digital camera adapters and other components allows you to easily customized the system for your specific situation.
The Short UNIMAC Series lenses have a 6.4:1 zoom ratio and maintain parfocality throughout their extended zoom range. The Short UNIMAC lenses are available in either a standard zoom configuration, or a detent zoom configuration, which is useful for calibration and measurement purposes.
COMPONENTS AND ACCESSORIES FOR SHORT UNIMAC SERIES
MACRO ZOOM OBJECTIVES
• MS-40D: Short UNIMAC 0.28X to 1.8X with C-mount adapter and detent W.D. 94mm
• MS-45D: Short UNIMAC 0.41X to 2.6X with C-mount adapter and detent W.D. 94mm
• MS-50D: Short UNIMAC 0.7X to 4.5X with C-mount adapter and detent W.D. 94mm
• MS-50R: Short UNIMAC 0.7X to 4.5X with C-mount adapter and iris W.D. 94mm
• MS-50DR: Short UNIMAC 0.7X to 4.5X with C-mount adapter, iris and detent W.D. 94mm
FOCUS BLOCKS (45MM INNER DIAMETER)
• MS-51/05: Coarse focus block. Fits 20mm mounting post
• MS-52/05: Inclinable coarse focus block (With 5/8" mounting pin)
• MS-53/05: Coarse and fine focus block. Fits 20mm mounting post
• MS-54/05: Inclinable coarse and fine focus block (With 5/8" mounting pin)
AUXILIARY LENSES
• MS-6: Auxiliary lens 0.5X, W.D. 182mm (7.24")
• MS-7: Auxiliary lens 0.75X, W.D. 105mm (4.1")
• MS-8: Auxiliary lens 1.5X, W.D. 44mm (1.7")
• MS-9: Auxiliary lens 2.0X, W.D. 29mm (1.1")
• MS-13/PT#2: Adapter for mounting 60mm I.D. ringlight
POLE TYPE STANDS
• MS-51: Coarse focus block, pole type plain stand, black and white stage plate
• MS-53: Coarse and fine focus block, pole type plain stand, black and white stage plate
• PK/SP-1: Plain ergonomic PK stand without a F holder
• PKL-2/MS-51/05: LED transmitted light ergonomic stand with coarse focus block (MS-51/05)
• BD-M-LED: Pole type stand with rotatable and sliding Y-axis mirror in base with locking tension ring and “pseudo” LED transmitted light darkfield illumination, with variable intensity controls, clear glass stage plate, two stage clips. Wide ergonomic base dimensions is 12" (L) x 15" (W), (9.5" pillar height, 20mm diameter pole) requires MS-51/05 or MS-53/05 holder Integrated automatic voltage sensing power supply 115/240V
WIDE SURFACE LAMINATE BOARD STANDS
• SBU: Large universal stand with crossarm, 221 /3" x 19¼" base
• UL: Large universal stand with rotatable stand for light source, 221 /3" x 19 ¼"
BOOM STANDS
• S-1100: Universal single boom stand with 20mm mounting post accepts F, FK, FC holder, vertical pole 15.11" (384mm) diameter 1.46" (37.2mm), horizontal arm 21.5" (544mm) diameter 1.46" (37.2mm), base 285mm x 260mm x 15mm, 40lbs
• S-1300: Universal single boom stand with 5/8" bonder pin acceptance for FS, FSC, FS/76 holder vertical pole 15.11" (384mm) diameter 1.46" (37.2mm), horizontal arm 21.5" (544mm) diameter 1.46" (37.2mm), base 285mm x 260mm x 15mm, 40lbs
• S-2100: Universal dual arm boom stand with 20mm mounting post for F, FK, FC holder, vertical pole 15.11" (384mm) diameter 1.46" (37.2mm), horizontal arm 21.5" (544mm) diameter 1.46" (37.2mm), base 285mm x 260mm x 15mm, 40lbs
• S-2300: Universal dual arm boom stand with 5/8" bonder pin acceptance for FS, FSC, FS/76 holder, vertical pole 15.11" (384mm) diameter 1.46" (37.2mm), horizontal arm 21.5" (544mm) diameter, 1.46" (37.2mm), base 285mm x 260mm x 18mm, 40lbs
NOTE: S-4000 Series horizontal poles 25.5mm diameter, vertical pole 29mm diameter
• S-4100: Universal single boom stand with 20mm mounting post for MS-51/05 or MS-53/05 holder, vertical pole 400mm (15.74") and horizontal pole 530mm (20.87")
• S-4200: Universal single boom stand with 20mm mounting post for MS-51/05 or MS-53/05 holder, vertical pole 610mm (24.0") and horizontal pole 530mm (20.87")
• S-4300: Universal single boom stand with 5/8" bonder adapter (MA552) for MS-52/05 or MS-54/05 holder, with vertical pole 400mm (15.74") and horizontal pole 535mm (21.06")
• S-4400: Universal single boom stand with 5/8" bonder adapter (MA552) for MS-52/05 or MS-54/05 holder, vertical pole 610mm (24.0") and horizontal pole 535mm (21.06")
• S-4500: Table clamp single boom stand with 20mm adapter for use with MS-51/05 or MS-53/05 holder, vertical pole 400mm (15.74") and horizontal pole 535mm (21.06") S-4600: Table clamp single boom stand with 5/8" adapter (MA552) for use with MS-52/05 or MS-54/05
HEAVY DUTY BOOM STANDS
• BAS-2: Ball bearing stand with dual horizontal arms, adjustable from 5.5" to 18", 13" x 13" x 1.5" base, 25" vertical post, safety clamp and 20mm straight mounting post for MS-51/05 or MS-53/05 holder (Note: Socket Head cap screw for base: 1/2" x 2" 13TP)
• BAS-3: Ball bearing stand with dual horizontal arms, 13" x 13" x 1.5" base, 25" vertical post, safety clamp for MS-52/05 or MS-54/05 holder
• MA552: 5/8" Bonder pin adapter to connect MS-52/05 or MS-54/05 holder to S-4300, S-4400, S-4600 and U stand
• U/PT#1: Drop down mounting post for MS-51/05 or MS-53/05 holder, 20mm diameter, 71mm length
• FC11: Mounting pin extension (The FC11 is required when mounting the FC 25.00 focus block on the 71mm long mounting pin of the S-4000 series boom stands)
ARTICULATING ARM STANDS
• SAS-1: Articulating Stand with 13" x 13" x 1.5" base, 16" vertical post, safety clamp and 20mm drop down mounting post. 6" arm, 31" reach for MS-51/05 or MS-53/05 holder
• SAS-2: Articulating Stand with 13" x 13" x 1.5" base, 16" vertical post, safety clamp and 20mm drop down mounting post. 12" arm, 37" reach for MS-51/05 or MS-53/05 holder
• SAS-3: Articulating Stand with 13" x 13" x 1.5" base, 16" vertical post, and OS-LAEA (Lift Arm End Adapter) 5/8" bonder pin dowel, 6" arm 31" reach for MS-52/05 or MS-54/05 holder
• SAS-4: Articulating Stand with 13" x 13" x 1.5" base, 16" vertical post, and OS-LAEA (Lift Arm End Adapter) 5/8" bonder pin dowel, 12" arm 37" reach or MS-52/05 or MS-54/05 holder
• FA-3: Articulating flex arm with a table clamp, accepts a 5/8" bonder pin focus block, FS and FSC or accepts a 20mm focus block by adding BAS-20SP, 20mm drop down post, for use with F, FX, FC focus block, 40" distance from vertical post to optical center or MS-52/05 or MS-54/05 holder
• BAS-20SP: 20mm straight drop down post for FA-3 or BAS-2 stand 4" in length
HALOGEN FIBER OPTIC ILLUMINATION
• FL151: Halogen Dual arm 150W fiber optic illumination system - 110/115V (Complete system)
• FL151/220: Halogen Dual arm 150W fiber optic illumination system - 220/240V (Complete system)
• FL150/70: Spare bulb - 21V 150W (EKE) (For FL or FT series)
FIBER OPTIC ILLUMINATION COMPONENTS
• FL150/115: Halogen Light source only for fiber light guide, 110/120V
• FL150/200: Halogen Light source only for fiber light guide, 220/240V
• FT190/115: Halogen Light source only for fiber light guide, 120VAC, 50/60Hz, 21V 150W
• FT190/230: Halogen Light source only for fiber light guide, 230VAC, 50/60Hz, 21V 150W
• FL150/65: Mini annular fiber optic ring light for MS-3 or MS-3D (Requires MS-22)
FLUORESCENT ILLUMINATORS
• MA305/100: Ring fluorescent illuminator, 110V, with inverter starter (Complete system)
• MA305/200: Ring fluorescent illuminator, 220/240V, with inverter starter (Complete system)
• MA305/05: Spare ring fluorescent tube, 8 watt DL (daylight)
HALOGEN ILLUMINATORS
• MA264H/100: Versatile illuminator, 110V with transformer, 6V, 20W halogen (T.S.L/DISC) (Complete system)
• MA264H/200: Versatile illuminator, 220/240V with transformer, 6V, 20W halogen (T.S.L/DISC) (Complete system)
• MA260/05: Spare Bulb, 6V 20W, halogen (No pip, replaces GE #788)
• FT191/B26: Dual arm fiber illumination system with adapters for S-4000 Boom Stand. Includes FT190/06 dual arm rigid self-supporting 20" Bifurcated/fluid bundle 40" flaccid with 15.8mm insert and FT190/06-26, 26mm adapter for dual rigid/flaccid bundle with three threaded holes, FT190/50 - qty# 2 focusing lens, FT190/115 light source and FTI-02 - qty# 1, 16mm light source adapter
• FT191/B26/230: Dual arm fiber illumination system with adapters for S-4000 Boom Stand. Includes FT190/06 dual arm rigid self-supporting 20" Bifurcated/fluid bundle 40" flaccid with 15.8mm insert and FT190/06-26, 26mm adapter for dual rigid/flaccid bundle with three threaded holes, FT190/50 - qty# 2 focusing lens, FT190/230 light source and FTI-02 - qty# 1, 16mm light source adapter
LED FIBER OPTIC ILLUMINATIORS
• FT193/B26: Single arm fiber illumination system with special mounting adapters for S-4000 horizontal arm for boom stands, includes FT190/13 single arm rigid self-supporting 20" fluid bundle with 15.8mm insert and FT190/06-26 (110V) - qty# 1 light source and FTI-02 - qty# 1, 16mm light source adapter
• FT193/B26/230: Single arm fiber illumination system with special mounting adapters for S-4000 horizontal arm for boom stands, includes FT190/13 single arm rigid self-supporting 20" fluid bundle with 15.8mm insert and FT190/06-26 (220V) - qty# 1 light source and FTI-02 - qty# 1, 16mm light source adapter
• FTM191: Dual arm fiber illumination system - 120VAC, 35W (USA) - Includes: FTM/115 - 35W LED light source with variable intensity control, FT190/05 self-supporting, dual arm light guide and two FT190/50 focusing lenses, 25mm adapter for boom horizontal arm
• FTM192: Annular fiber illumination system - 120VAC, 35W (USA) - Includes: FTM/115 - 35W LED light source with variable intensity control, FT190/10 Annular Light guide (60mm I.D.) 25mm adapter for boom horizontal arm
• FTM193: Single arm fiber illumination system - 120VAC, 35W (USA) - Includes: FTM/115 - 35W LED light source with variable intensity control, FT190/75 - 24" self-supporting, single arm light guide and one FT190/50 focusing lenses, 25mm adapter for boom horizontal arm
LED FIBER OPTIC ILLUMINATIORS
• FT193/B26: Single arm fiber illumination system with special mounting adapters for S-4000 horizontal arm for boom stands, includes FT190/13 single arm rigid self-supporting 20" fluid bundle with 15.8mm insert and FT190/06-26 (110V) - qty# 1 light source and FTI-02 - qty# 1, 16mm light source adapter
• FT193/B26/230: Single arm fiber illumination system with special mounting adapters for S-4000 horizontal arm for boom stands, includes FT190/13 single arm rigid self-supporting 20" fluid bundle with 15.8mm insert and FT190/06-26 (220V) - qty# 1 light source and FTI-02 - qty# 1, 16mm light source adapter
• FTM191: Dual arm fiber illumination system - 120VAC, 35W (USA) - Includes: FTM/115 - 35W LED light source with variable intensity control, FT190/05 self-supporting, dual arm light guide and two FT190/50 focusing lenses, 25mm adapter for boom horizontal arm
FTM192: Annular fiber illumination system - 120VAC, 35W (USA) - Includes: FTM/115 - 35W LED light source with variable intensity control, FT190/10 Annular Light guide (60mm I.D.) 25mm adapter for boom horizontal arm
• FTM193: Single arm fiber illumination system - 120VAC, 35W (USA) - Includes: FTM/115 - 35W LED light source with variable intensity control, FT190/75 - 24" self-supporting, single arm light guide and one FT190/50 focusing lenses, 25mm adapter for boom horizontal arm
LED RING LIGHT ILLUMINATORS
• MA951D/30: Mini annular ring illuminator 44mm inner diameter with 30 LED array, daylight. 600.00 62mm minimum working distance and has high strength aluminum alloy. Includes auto voltage sensing power supply, 3 segment control with rheostat
