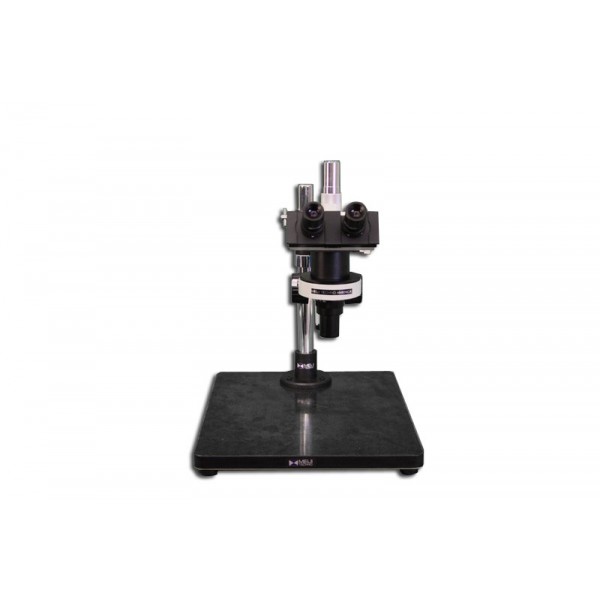

MA603 + MS-3D + MS-4 + MA407(x2) + F + MS-5 + MU Unimac Configuration System

The UNIMAC Macroscopes are fully modular universal zoom systems with a wide array of features. They have versatile modular lens systems suited for a variety of applications. They are perfect for industrial, medical, educational, and research applications as well as custom or OEM applications. Their visual magnification ranges from 3.5X to 135X (with optional lenses) which shows exceptional clarity and depth of field.


The MS-3D is a Macro Zoom Lens that has a magnification of 0.7X to 4.5X and also includes a detent. The MS-4 mounted is an intermediate tube for the head and zoom objectives. The head attached is a inclined trinocular head, non erect image. The head can be interchange with another head such as the MA602 (binocular, non-erect) or MA657 (binocular head, erect image). The MA407 are a pair of eyepieces that are DIN KHW10X compensating eyepieces with a field number of 20. The F coarse focus block/Holder is a focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. It has a coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post and has a 84.2mm diameter opening. The MS-5 is an adapter plate for stand or focus holder that has an outer diameter of 84mm. The base of the system, the MU stand, is a laminate board stand which requires external illumination and focus holder. This MU Ergonomic stand can accommodate an extended work surface for use with large circuit boards or animal surgery which requires a wide surface area. The MU Stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically to accommodate different sample heights or special applications.


NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered:
• Zoom macroscope objective (MS-3 or MS-3D)
• Viewing head (Straight tube, monocular, binocular, or trinocular)
• Eyepieces (10X, 15X or 20X)
• Auxiliary Lens (0.5X, 0.75X, 1.5X or 2.0X)
• Focus holder/block
• Stands (Pole stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• Stage (Optional)
• Camera (CMOS or CCD with female C” mount or SLR type cameras) and Camera Adapters (Optional) Made In Japan


Locate a DealerGet a Quote

MA603 + MS-3D + MS-4 + MA407(x2) + F + MS-5 + MU

MA603 Info:

Inclined trinocular head, non erect image

MS-3D Info:

Zoom macroscope objective with 0.7X to 4.5X zoom with detent

MS-4 Info:

Intermediate tube for head and zoom objectives

MA407 Info:

DIN KHW10X, compensating eyepiece, Field No. 20

F-holder Info:

Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening.

MS-5 Info:

Adapter plate for stand or focus holder 84.4mm O.D.

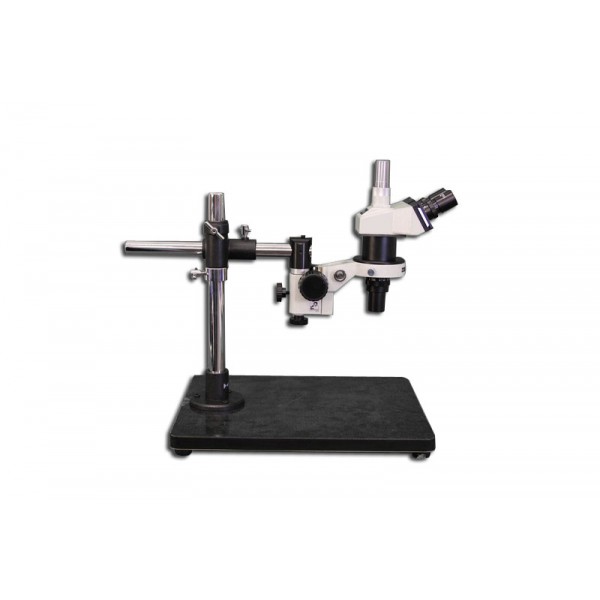

MU Stand Info:



Stand: Wide surface stand with 15 3/4" X 18 7/8" inch base and crossarm
Illumination Port: No illumination, requires an external illuminator for lighting - See Illuminators

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Packaging Information
• Weight: ~ 25 lbs
• Box Dimensions: 18" x 15" x 18"

Details

The UNIMAC Macroscopes are fully modular universal zoom systems with a wide array of features. They have versatile modular lens systems suited for a variety of applications. They are perfect for industrial, medical, educational, and research applications as well as custom or OEM applications. Their visual magnification ranges from 3.5X to 135X (with optional lenses) which shows exceptional clarity and depth of field.

The UNIMAC Macroscopes are uniquely capable as they have low magnification ranges and extraordinary depth of field. Their characteristics make them most useful in examining whole devices and studying and controlling mini-manufacturing processes. The UNIMAC Macroscopes offer important advantages to the user. It is fully modular in concept and in construction. A universal range of the techniques can be quickly applied and all modes of observation - visual, photographic and television can be employed.

The UNIMAC Macroscopes magnification range goes from 0.7X to 4.5X, but can be modified and extended by our auxiliary lenses. Additional illumination can be added, such as our true coaxial illuminator, which gives a large field of view. Also available is the 1/4 wave plate in a rotatable mount which permits inspections in polarized light which is especially useful when examining “overlay” circuits. This means one orientation of the 1/4 wave plate can be observed, while another overlaid circuit will be visible when the 1/4 wave plate is rotated 90°.

Features:
• Superb Optical Quality
• 0.7X to 4.5X Zoom Ratio
• Maintains excellent parfocality throughout zoom range
• 4 useful auxiliary lenses provide a range of working distances and magnifications.
• On screen video magnifications range from 1.75X to 500X or more
• Wide range of accessories including stands, focusing, illumination, polarized accessories and camera adapters
• Many configurations available

Details

Components & Accessories

MACRO ZOOM OBJECTIVES
• MS-3D: Zoom macroscope objective with 0.7X to 4.5X zoom with detent

VIEWING HEADS
• MS-15: Inclined monocular head with C-mount for TV (T.S.L/DISC)
• MA602: Inclined binocular head, non erect image
• MA603: Inclined trinocular head, non erect image
• MA603/05: Inclined trinocular head, non erect image with depolarizer
• MA657: Binocular head, erect image
• MA657/05: Binocular head, erect image with depolarizer
• MA414: Filar micrometer eyepiece with inclined monocular head

EYEPIECES
• MA406: DIN, HWF10X eyepiece, field No. 18 (each)
• MA407: DIN, KHWF10X eyepiece, field No. 20 (each)
• MA408: DIN, HWF15X eyepiece, field No. 12.1 (each)
• MA409: DIN, HWF20X eyepiece, field No. 9 (each)
• MA413C: DIN, focusing 10X eyepiece with cross-line reticle, field No. 18 (each)
• MA413: DIN, focusing 10X eyepiece with 19mm reticle mount (without reticle) (each)

TUBE AND ADAPTER
• MS-4: Intermediate tube for head and zoom objectives
• MS-5: Adapter plate for stand or focus holder 84.4mm O.D.

AUXILIARY LENSES
• MS-6: Auxiliary lens 0.5X, W.D. 183mm
• MS-7: Auxiliary lens 0.75X, W.D. 110mm
• MS-8: Auxiliary lens 1.5X, W.D. 44mm
• MS-9: Auxiliary lens 2.0X, W.D. 29mm
• MS-11: 1/4 wave plate in rotatable mount for MS-3 and MS-3D (T.S.L/DISC)
• MS-17: Rotatable polarizer for MS-3 and MS-3D (T.S.L/DISC)
• MS-24: Protective glass for MS-3 and MS-3D (T.S.L/DISC)

FOCUS BLOCKS (REQUIRES MS-5 ADAPTER)
COARSE FOCUS BLOCKS
• F: Focusing slide block. Fits 20mm mounting post
• FK: Focusing slide block similar to F holder but with increased throat depth, 165mm from center of ring to center of mounting post
• FS: Inclinable coarse focus block used to hold the MS-5 with MS-3 macro zoom objective on machines or for special applications (5/8" mounting pin)

COARSE AND FINE FOCUS BLOCKS
• FC: Focus block with coarse and fine focus. Fits 20mm mounting post (requires FC11)
• FC11: Mounting pin extension. (The FC11 is required when mounting the FC focus block on the 71mm long mounting pin of the S-4000 series stands)
• FSC: Inclinable coarse and fine focus block used to hold the MS-5 adapter plate with
• MS-3: and MS-3D macro zoom objective for special applications (5/8" mounting pin)

POLE TYPE STANDS (REQUIRES MS-5 ADAPTER)
• P: Pole type stand with focusing slide block, reversible white and black stage plate, two stage clips (8.35" pillar) (stand requires MS-5 mounting plate)
• PK: Pole type stand with coarse focusing slide block, reversible white and black stage, plate two stage clips (10" pillar), base: 330mm (12.99") wide x 280mm (11") deep (stand requires MS-5 mounting plate)
• PKC: Pole type stand with coarse and fine focusing slide block, reversible white and black stage plate, two stage clips (10" pillar), base: 330mm (12.99") wide x 280mm (11") deep (stand requires MS-5 mounting plate)
• PKL-1: Pole type stand with incident LED illumination system, coarse focusing slide block, 5 watt LED incident illuminator, variable intensity control, reversible black and white stage plate, two stage clips (10" pillar), base: 330mm (12.99") wide x 280mm (11") deep (stand requires MS-5 mounting plate)
• PKL-2: Pole type stand with dual LED illumination system, coarse focusing slide block, 5 watt LED incident illuminator, dual variable intensity controls, milk white stage plate, two stage clips (10" pillar), base: 330mm (12.99") wide x 280mm (11") deep (stand requires MS-5 mounting plate)
• PLS-1: Pole type stand with incident light LED illumination system, coarse focusing slide block, 5 watt LED incident illuminator, variable intensity control, reversible black and white stage plate, two stage clips. Total Height: 251mm (9.88"), Pillar only: 212.85mm (8.38"), base: 180mm (7.08") wide x 272mm (10.70") (stand requires MS-5 mounting plate)
• PLS-2: Pole type stand with incident and transmitted light LED illumination system, coarse focusing slide block, 5 watt LED incident illuminator, dual variable intensity control, milk white stage plate, two stage clips. Total Height: 251mm (9.88") Pillar height: 212.85mm (8.38"), base: 180mm (7.08") wide x 272mm (10.70") (stand requires MS-5: mounting plate)
• PC: Pole type stand with coaxial coarse and fine focusing slide block, reversible white and black stage plate, two stage clips (8.35" pillar) (stand requires MS-5 mounting plate)
• MS-5: Adapter plate for pole stand and focus holder

ILLUMINATORS

FIBER OPTIC ILLUMINATION COMPONENTS
• FL150/115: Halogen Light source only for fiber light guide, 110/120V
• FL150/200: Halogen Light source only for fiber light guide, 220/240V (Complete system)
• FT190/115: Halogen Light source only for fiber light guide, 110/120V
• FT190/230: Halogen Light source only for fiber light guide, 220/240V
• FL-5000-US-B1: LED Power Supply with 15mm (0.590") Fiber Input Diameter - 110/240V
• FL-5000-EU-B1: LED Power Supply with 15mm (0.590") Fiber Input Diameter - 110/240V with European standard electrical cord.

FIBER OPTIC ILLUMINATION COMPONENTS
• FL150/65: Mini annular fiber optic ring light for MS-3 or MS-3D
• MS-13/PT#2: Adapter to fit regular standard ring illuminator on short unimac and unimac (FT192, FL152, MA964, MA961 series)

COAXIAL ILLUMINATORS
• MS-16/100: Coaxial illuminator, variable 12V 50W halogen lamp, with 115V transformer (T.S.L/DISC)
• MS-21: Incident reflector for use with FL150/80 single fiber light guide (T.S.L/DISC)
• FL150/80: Flexible 36" single arm fiber optic light guide for use with

LED RING LIGHT ILLUMINATORS
• MA951D/30: Mini annular ring illuminator 44mm inner diameter with 30 LED array, daylight. 62mm minimum working distance and has high strength aluminum alloy. Includes auto voltage sensing power supply, 3 segment control with rheostat
• MA964: LED Ring illuminator with automatic voltage sensing power supply, 115V or 240V 60 LED Array, 10,000 hour rated lifetime, CE approved, fits 53mm – 60mm nosepiece Wattage: 10W Transformer case: Length 150mm, width 60mm, height 83mm (JAPAN)
• MA961D/S/ESD: LED Ring illuminator 40 Daylight LED, 6500K, shadow free illumination, supplied with controller and power supply. Standard model fits 1.25" – 2.6" (66mm) lenses (USA)
• MA961C/S/ESD: LED Ring illuminator 40 adjustable Cool White LED, 360º shadow free illumination, supplied with controller and power supply. Standard model fits 1.25" – 2.6" (66mm) lenses. ESD paint and construction (USA)
• MA961W/S/ESD: LED Ring illuminator 40 adjustable high brightness Warm White LED, 360º shadow free illumination, supplied with controller and power supply. Standard model fits 1.25" – 2.6" (66mm) lenses. ESD paint and construction (USA)
• MA961/S/AP: Polarizer/Analyzer for MA961W/S/ESD, MA961D/S/ESD and MA961C/S/ESD (USA)
• MA961D/40: LED Ring illuminator 40 powerful high precision aligned Daylight LEDS. Supplied with 4 quadrant controller and auto voltage sensing power supply. Fully adjustable dimming control. 360º shadow free illumination. Standard model fits 1.25" – 2.6" (66mm) lenses. (USA)
• MA961C/40: LED Ring illuminator 40 powerful high precision aligned Cool White LED. Supplied with 4 quadrant controller and auto voltage sensing power supply. Fully adjustable dimming control. 360º shadow free illumination. Standard model fits 1.25” – 2.6” (66mm) lenses. (USA)
• MA961W/40: LED Ring illuminator 40 powerful high precision aligned Warm White LED. Supplied with 4 quadrant controller and auto voltage sensing power supply. Fully adjustable dimming control. 360º shadow free illumination. Standard model fits 1.25" – 2.6" (66mm) lenses. (USA)
• MA961UV/40: LED Ring illuminator Quadrant Adjustable 40 UV LED ringlight with 66mm I.D., 2700K Supplied with 4 quadrant controller and auto voltage sensing power supply. Fully adjustable dimming control. 360º shadow free illumination. Standard model fits 1.25" – 2.6" (66mm) lenses. (USA)
• MA961/40/AP: Polarizer/Analyzer Kit for MA961W/40, MA961D/40, MA961C/40 (USA)
• MA961/40DIFF: Diffuser Kit for MA961W/40, MA961D/40, MA961C/40 (USA)
• MA961D/80/ESD: LED Ring illuminator Quadrant adjustable segmented 80 Daylight LED ringlight 6500K with 66mm I.D. with 8 separately controllable banks with dimmer switch 90º segmented control, ESD paint and construction (USA)
• MA961C/80/ESD: LED Ring illuminator Quadrant adjustable segmented 80 Cool White LED ringlight with 66mm I.D. 4500K with 8 separately controllable banks with dimmer switch 90º segmented control, ESD paint and construction (USA)
• MA961W/80/ESD: LED Ring illuminator Quadrant adjustable high intensity 80 LED, Warm White 3000K output lumens, 5 watts, supplied with dual quadrant controller and power supply. Standard model fits 1.25" – 2.6" (66mm) I.D. White LED Inner and Outer Ring. (USA)
• MA961UV/V/80/ESD: LED Ring illuminator Quadrant adjustable high intensity UV 80 LED, Visible Light, 5 watts, supplied with dual quadrant controller and power supply. Standard model fits 1.25" – 2.6" (66mm) I.D. Ultraviolet inner ring and Daylight outer ring. ESD paint and construction. (USA)
• MA961/80/AP: Polarizer/Analyzer for MA961D/80/ESD, MA961C/80/ESD, MA961W/80/ESD (USA)
• MA961/80DIFF: Diffuser Kit for MA961D/80/ESD, MA961C/80/ESD, MA961W/80/ESD (USA)
• TPI6IL: Dual arm LED gooseneck stand alone unit with adaptive control for brightness intensity with weighted compact base for stability and space saving footprint (USA)
