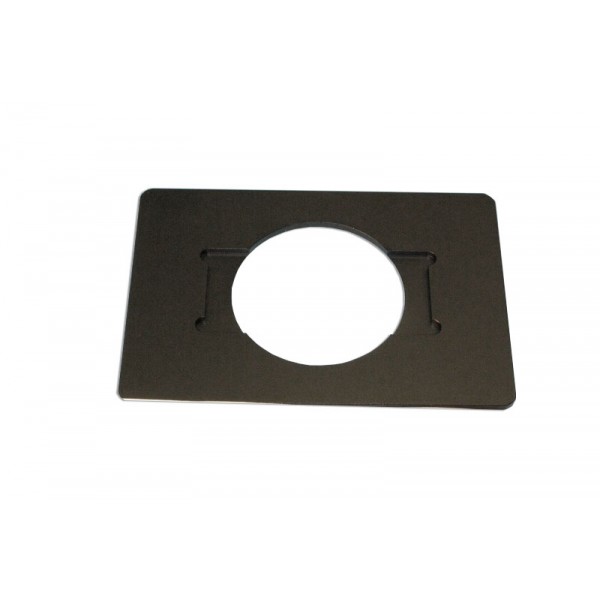

MA382 - Slide Glass Holder for MA380 and MA380/05 Stages used in TC-5000 and TC-5000C series

MA382 Info:
Slide glass holder, 1"x 3" (Rectangular Plate - 129.74mm x 89.78mm)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: Less than 1lbs
   • Box Size: 8" x 8" x 4"

The TC-5000 Brightfield/Phase Contrast Series features include:

• Seidentopf type binocular head inclined at 30° or trinocular at 45°
• Equipped with 6V, 30W Halogen lamp illuminator
• N.A. 0.30 condenser
• 180mm(X) X 245mm(Y) stage with replaceable glass insert with 45mm opening
• Exchangeable observation tubes
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Compact wedge shaped cast aluminum alloy frame for exceptional stability and a small footprint
• Chemical resistant baked enamel finish
• Flexible and modular design for system expansion
• Transparent stage plate for easy objective identification
• Low profile coaxial and fine focus controls with tension adjustment
• Precentered 30W Halogen bulb
• Front mounted CCD, analog or SLR cameras
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Optional mechanical stage with specimen holders

Brightfield:
The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.

Phase Contrast:
An optical microscopy technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations. When light waves travel through a medium other than vacuum, interaction with the medium causes the wave amplitude and phase to change in a manner dependent on properties of the medium. Changes in amplitude (brightness) arise from the scattering and absorption of light, which is often wavelength-dependent and may give rise to colors. Photographic equipment and the human eye are only sensitive to amplitude variations. Without special arrangements, phase changes are therefore invisible.

The TC-5300 & TC-5400 Series are suitable for viewing colorless and transparent specimens and live cells. The TC-5300 & TC-5400 Series is a contrast-enhancing optical technique that can be utilized to produce high-contrast images of transparent specimens such as living cells, microorganisms, thin tissue slices, lithographic patterns, and sub-cellular particles (such as nuclei and other organelles). In effect, the phase contrast technique employs an optical mechanism to translate minute variations in phase into corresponding changes in amplitude, which can be visualized as differences in image contrast. One of the major advantages of phase contrast microscopy is that living cells can be examined in their natural state without being killed, fixed, and stained. As a result, the dynamics of ongoing biological processes in live cells can be observed and recorded in high contrast with sharp clarity of minute specimen detail.

Epi-Fluorescent:
Microscope with Epi-Fluorescence is an optical microscope that uses fluorescence and phosphorescence instead of, or in addition to, reflection and absorption to study properties of organic or inorganic substances. The “fluorescence microscope” refers to any microscope that uses fluorescence to generate an image, whether it is a more simple set up like an epifluorescence microscope, or a more complicated design such as a confocal microscope, which uses optical sectioning to get better resolution of the fluorescent image.

OPTIONAL COMPONENTS & ACCESSORIES BELOW FOR TC-5000 BRIGHTFIELD SERIES

Viewing Heads:
   • MA816/10: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) (Included with TC-5200) Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube)
   • MA957/15: Ergonomic binocular head, inclination adjustable vertically from 10° to 50° (Included with TC-5100E)
   • MA1034: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (25mm reticle mount)

LWD Brightfield Objectives:
   • MA820: TC LWD Planachromat 4X objective ∞/1.0 N.A. 0.13, F.L. 50.0, W.D. 17.3
   • MA823: TC LWD Planachromat 40X objective ∞/1.0 N.A. 0.65, F.L. 5.0, W.D. 2.8

Condensers:
   • MA854: TC Condenser, N.A. 0.55, W.D. 20.5mm (For use with MA823 40X objective)

Filters:
   • MA861: Green interference filter in 51mm mount (546nm)
   • MA856: LB100 Blue clear filter in 51mm mount
   • MA857: G533 Green clear filter in 51mm mount
   • MA858:ND25 Neutral density filter in 51mm mount

Miscellaneous:
   • MA809/20: Removable AC Electric cord with plug for 220V models (included in all 220V models) CAMERA ADAPTERS FOR “C” MOUNT TYPE CAMERAS
   • MA877: “C” mount type camera adapter for CCD/CMOS camera (No internal lens) (Magnification factor of 0.66X from TC5000 Series front camera port)
CAMERA ADAPTERS FOR DIGITAL STILL CAMERAS
   • MA868: Digital camera adapter for non “C” mount type cameras (52mm O.D. thread) For TC Series front camera port only: (Requires additional DCA adapter ring for your specific model of camera which are listed on the last two pages of the TC5000 section) CAMERA ADAPTERS FOR 35mm TYPE CAMERAS
   • MA869: 35mm SLR camera attachment Magnification at film plane is 2.23X of objective in use

Stages (Fixed 245mm x 180mm, plain stage is included with stand):
   • MA878: Replacement glass stage plate insert for plain stage - TC5000 Series (Round - 109mm diameter, 1.5mm thick with 44.3mm opening) (Fits plain stage only not for use with MA380/05)
   • MA380/05: Attachable mechanical stage, movement 112mm(X) x 72mm(Y) with test plate holder and drop-down coaxial X-Y controls.

COMPONENTS OFTEN PAIRED WITH THE MA380/05 MECHANICAL STAGE

Specimen Holders for use with MA380/05 Attachable Mechanical Stage (Rectangular Plate 129.74mm x 89.78 mm x 3mm):
   • MA382: Slide glass holder, 1”x 3”
   • MA383: Chamber holder (For 55mm x 80mm chamber)
   • MA384: Petri dish holder 35mm diameter
   • MA385: Petri dish holder 55mm diameter
   • MA387: Petri dish holder 65mm diameter
   • MA864: Terasaki plate holder (For 56mm x 87mm Terasaki plate)
   • MA378: Hemacytometer holder

Stage Micrometers:
   • MA285: Objective micrometer, 0.01mm ruling
   • MA286: 0.04” divided into 40 units, 0.001
   • MA285: 1mm divided into 100 parts

Eyepiece Micrometers:
   • MA523: Cross-line reticule, 25mm diameter
   • MA506: Eyepiece micrometer, 10mm divided into 100 units, 25mm diameter
   • MA509: Eyepiece micrometer 5mm divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 100 parts, 1.0mm square, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 21mm diameter

OPTIONAL COMPONENTS & ACCESSORIES BELOW FOR TC-5000 BRIGHTFIELD/PHASE CONTRAST SERIES

Viewing Heads:
   • MA816/10: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) (Included with TC-5400) Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube)
   • MA957/15: Ergonomic binocular head, inclination adjustable vertically from 10° to 50° (Included with TC-5100E)
   • MA1034: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (25mm reticle mount)

Phase Objectives:
   • MA825: TC Planachromat Phase 4X objective ∞/1.0 N.A. 0.13, F.L. 50.0, W.D. 17.3
   • MA828: TC Planachromat Phase 40X objective ∞/1.0 N.A. 0.65, F.L. 5.0, W.D. 2.8

Condensers:
   • MA854: TC Condenser, N.A. 0.55, W.D. 20.5mm (For use with MA823 40X objective)

Filters:
   • MA856: LB100 Blue clear filter in 51mm mount
   • MA857: G533 Green clear filter in 51mm mount
   • MA858: ND25 Neutral density filter in 51mm mount

Miscellaneous:
   • MA809/20: Removable AC Electric cord with plug for 220V models (included in all 220V models) CAMERA ADAPTERS FOR “C” MOUNT TYPE CAMERAS
   • MA877: “C” mount type camera adapter for CCD/CMOS camera (No internal lens) (Magnification factor of 0.66X from TC5000 Series front camera port)
CAMERA ADAPTERS FOR DIGITAL STILL CAMERAS
   • MA868: Digital camera adapter for non “C” mount type cameras (52mm O.D. thread) For TC Series front camera port only: (Requires additional DCA adapter ring for your specific model of camera which are listed on the last two pages of the TC5000 section) CAMERA ADAPTERS FOR 35mm TYPE CAMERAS
   • MA869: 35mm SLR camera attachment Magnification at film plane is 2.23X of objective in use

Stages (Fixed 245mm x 180mm, plain stage is included with stand):
   • MA878: Replacement glass stage plate insert for plain stage - TC5000 Series (Round - 109mm diameter, 1.5mm thick with 44.3mm opening) (Fits plain stage only not for use with MA380/05)
   • MA380/05: Attachable mechanical stage, movement 112mm(X) x 72mm(Y) with test plate holder and drop-down coaxial X-Y controls.

COMPONENTS OFTEN PAIRED WITH THE MA380/05 MECHANICAL STAGE

Specimen Holders for use with MA380/05 Attachable Mechanical Stage (Rectangular Plate 129.74mm x 89.78 mm x 3mm):
   • MA382: Slide glass holder, 1”x 3”
   • MA383: Chamber holder (For 55mm x 80mm chamber)
   • MA384: Petri dish holder 35mm diameter
   • MA385: Petri dish holder 55mm diameter
   • MA387: Petri dish holder 65mm diameter
   • MA864: Terasaki plate holder (For 56mm x 87mm Terasaki plate)
   • MA378: Hemacytometer holder

Stage Micrometers:
   • MA285: Objective micrometer, 0.01mm ruling
   • MA286: 0.04” divided into 40 units, 0.001
   • MA285: 1mm divided into 100 parts

Eyepiece Micrometers:
   • MA523: Cross-line reticule, 25mm diameter
   • MA506: Eyepiece micrometer, 10mm divided into 100 units, 25mm diameter
   • MA509: Eyepiece micrometer 5mm divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 100 parts, 1.0mm square, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 21mm diameter

OPTIONAL COMPONENTS & ACCESSORIES BELOW FOR TC-5000C EPI-FLUORESCENCE SERIES

Viewing Heads:
   • MA816/10: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) (Included with TC-5600) Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube)
   • MA1034: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (25mm reticle mount)

Objectives for Fluorescence:
   • MA849: TC Planachromat F4X objective ∞/1.0 N.A. 0.13, F.L. 50.0, W.D. 17.5
   • MA852: TC Planachromat F40X objective ∞/1.0 N.A. 0.60, F.L. 5.0, W.D. 2.9
   • MA846: TC Plan Semi Apo F40X objective ∞/1.0 N.A. 0.82

Condensers:
   • MA854: TC Condenser, N.A. 0.55, W.D. 20.5mm (For use with MA823 40X objective)

Filters:
   • MA197: ND13 Neutral density filter (Optional) (For use in TC5500, TC5600 filter slider)
   • MA860: ND25 Neutral density filter (Optional) (For use in TC5500, TC5600 filter slider)
   • MA856: LB100 Blue clear filter in 51mm mount
   • MA857: G533 Green clear filter in 51mm mount
   • MA858: ND25 Neutral density filter in 51mm mount

Miscellaneous:
   • MA809/20: Removable AC Electric cord with plug for 220V models (included in all 220V models) CAMERA ADAPTERS FOR “C” MOUNT TYPE CAMERAS
   • MA877: “C” mount type camera adapter for CCD/CMOS camera (No internal lens) (Magnification factor of 0.66X from TC5000 Series front camera port)
CAMERA ADAPTERS FOR DIGITAL STILL CAMERAS
   • MA868: Digital camera adapter for non “C” mount type cameras (52mm O.D. thread) For TC Series front camera port only: (Requires additional DCA adapter ring for your specific model of camera which are listed on the last two pages of the TC5000 section) CAMERA ADAPTERS FOR 35mm TYPE CAMERAS
   • MA869: 35mm SLR camera attachment Magnification at film plane is 2.23X of objective in use

Stages (Fixed 245mm x 180mm, plain stage is included with stand):
   • MA878: Replacement glass stage plate insert for plain stage - TC5000 Series (Round - 109mm diameter, 1.5mm thick with 44.3mm opening) (Fits plain stage only not for use with MA380/05)
   • MA380/05: Attachable mechanical stage, movement 112mm(X) x 72mm(Y) with test plate holder and drop-down coaxial X-Y controls.

COMPONENTS OFTEN PAIRED WITH THE MA380/05 MECHANICAL STAGE

Specimen Holders for use with MA380/05 Attachable Mechanical Stage (Rectangular Plate 129.74mm x 89.78 mm x 3mm):
   • MA382: Slide glass holder, 1”x 3”
   • MA383: Chamber holder (For 55mm x 80mm chamber)
   • MA384: Petri dish holder 35mm diameter
   • MA385: Petri dish holder 55mm diameter
   • MA387: Petri dish holder 65mm diameter
   • MA864: Terasaki plate holder (For 56mm x 87mm Terasaki plate)
   • MA378: Hemacytometer holder

Stage Micrometers:
   • MA285: Objective micrometer, 0.01mm ruling
   • MA286: 0.04” divided into 40 units, 0.001
   • MA285: 1mm divided into 100 parts

Eyepiece Micrometers:
   • MA523: Cross-line reticule, 25mm diameter
   • MA506: Eyepiece micrometer, 10mm divided into 100 units, 25mm diameter
   • MA509: Eyepiece micrometer 5mm divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 100 parts, 1.0mm square, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 21mm diameter
