MA880 Basic Green CHROMA Filter for TC5500C and TC-5600C Series

MA880 Basic Green CHROMA Filter for TC5500C and TC-5600C Series

The MA879 is a basic green CHROMA (19004) filter-AT-TRITC/Cy3 that is mounted in a TC-FS/PT#4. Exciter (EX): AT:540/25X, Dichroic (BS): AT565DC Emitter (EM): 5751lp. This is included in all TC5500C and TC5600C models.

MA880 Info:

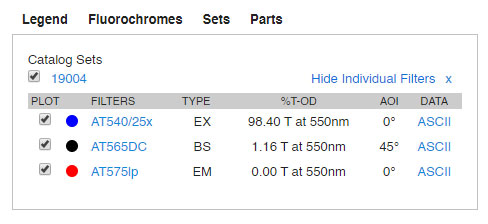

Basic Green CHROMA (19004) filter-AT-TRITC/Cy3 that is mounted in a TC-FS/PT#4. Exciter (EX): AT:540/25X, Dichroic (BS): AT565DC Emitter (EM): 5751lp

For a more interactive information about filter please visit: https://www.chroma.com/products/sets/19004-at-tritc-cy3-longpass

Product Information:
   • Manufactured: 100% MADE IN JAPAN / 100% MADE IN UK (CoolLED)
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: Less than 1lbs
   • Box Size: 8" x 8" x 4"

Details

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
TC-5100 Brightfield	Binocular	Koehler w/o iris 6V 30W halogen	SWH10x FN22	Quintuple Nosepiece w/LWD 10X & LWD 20X	Plain Fixed Stage 180mm X 247mm	TC Condenser WD 73mm NA 0.30orTC Condenser2 WD 20.5mm NA 0.55
TC-5100E Brightfield	Ergonomic Binocular
TC-5200 Brightfield	Trinocular
TC-5300 Phase Contrast	Binocular	Koehler w/o iris with phase slider 6V 30W halogenKoehler 6V 30W halogen
TC-5300E Phase Contrast	Ergonomic Binocular
TC-5400 Phase Contrast	Trinocular
TC-5500CL Epi-Fluorescent	Binocular	PE300L/LEDTC CoolLED & 6V, 30W		Quintuple Nosepiece LWD TC Planachromat F10X, F20X		TC Condenser WD 73mm NA 0.30 or TC Condenser2 WD 20.5mm NA 0.55
TC-5500CW Epi-Fluorescent	Binocular	PE300W/LEDTC CoolLED & 6V, 30W
TC-5600CL Epi-Fluorescent	Trinocular	PE300L/LEDTC CoolLED & 6V, 30W
TC-5600CW Epi-Fluorescent	Trinocular	PE300W/LEDTC CoolLED & 6V, 30W

VIEWING HEADS
Binocular models, the TC5100, TC5300 and TC5500, incorporate the MA814 Siedentopf-type binocular head while the trinocular models, the TC5200, TC5400 and TC5600 have the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photo-microscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1" X 3" glass slide holder, Hemacytometer holder.Slide, chamber, and petri dish holding plates of various sizes are available separately.

CONDENSER
The standard condenser has a working distance of 73mm.

ILLUMINATION
A powerful 6 volt 30 watt halogen bulb with pre-centered socket provides enhanced image quality and brightness for the observation of specimens.

PE-300L/LEDTC: LED fluorescence illumination kit, configured for fluorophores such as DAPI, FITC , TRITC & Cy5, instant on/off with the ability to optimize intensity & minimize sample damage via the simple desktop Control Pod with a manual control pod and power supply (Included in TC-5500CL & TC-5600CL models).
PE-300L/LEDTC features:
- Direct fit to the microscope in seconds
- Broad spectrun - covers UV (DAPI) to Red region (Cy5)
- No alignment, a once only adjustment
- Instant on/off - no shutters required, no warm up or cool down
- Stable and repeatable - reliable and precise results
- Fine intensity control in 1% steps (0-100%) - no ND filters required
- Excellent uniformity over field of view - fixed and stable, no alignment necessary

PE-300W/LEDTC: *LED fluorescence illumination kit, configured for fluorophores such as DAPI, FITC, TRITC & Cy5, adds greater control options to the platform, 3 channel control pod allows selection and control of excitation wavelength whether its to balance your FITC against your TRITC or to minimize bleaching by exciting only the markers that you are working. Supported by popular imaging software giving integrated control with your imaging set up time after time. An additional benefit of the PE-300W/LEDMT is that stains can be viewed either individually or in combination, without filter cube changes. This makes it ideal for use with multi-band filter sets as the screening process can be simplified when fewer filter cubes are used. Independent control for the three LED channels means that the user can control the level of excitation of each fluorescent stain independently on a multi-stained samples, potentially removing the need for single band filter sets altogether. Instant on/off with the ability to optimize intensity and minimize sample damage via the simple desktop Control Pod with a manual control pod and power supply.
(Included in TC-5500CW & TC-5600CW models)
PE-300W/LEDTC features:
- Remote control via USB or TTL trigger
- Three LEDs
- Simple to fit, simple to use: no alignment, a once only adjustment
- Instant on/off - no shutters required, no warm up or cool down
- Stable and repeatable - reliable and precise results
- Precise intensity control in 1% steps (0-100%): no ND filters required

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

Details

Components & Accessories

Included:
• TC-5500CL: Binocular EPI-Fluorescence/Brightfield Inverted Biological Compound microscope, ∞Infinity Corrected Optical System, F-200MM with 6V 30W Halogen Koehler illumination;PE-300L/LEDTC: LED fluorescence illumination kit, configured for fluorophores such as DAPI, FITC , TRITC & Cy5, instant on/off with the ability to optimize intensity & minimize sample damage via the simple desktop Control Pod with a manual control pod and power supply, with quintuple nosepiece and auto voltage sensing power supply
   • MA879: Chroma Filter (19002L)- AT-GFP /FITC Longpass- (Installed in TC-FS/PT#4) Exciter (EX): AT480/30x, Dichroic (BS)AT505DC, Emitter (EM): AT515lp
   • MA880: Chroma Filter (19004) –AT-TRITC/Cy3 Longpass -(Installed in TC-FS/PT#4) Exciter (EX): AT540/25x, Dichroic (BS)AT565DC, Emitter (EM): AT515lp
   • TC-FS/PT#4: Filter Slider with 3 positions filter holder with Brightfield position and MA879 and MA880 factory installed.
   • MA814: Siedentopf type binocular, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
   • MA850: TC Long Working Distance LWD Planachromat F10X objective ∞/1.0
   • MA827: TC Long Working Distance LWD Planachromat F20X objective ∞/1.0
   • MA853: TC Condenser, N.A. 0.30, W.D. 73.mm
   • TC-FL: FLUORESCENT ILLUMINATOR ATTACHMENT
• PE-300L/LEDTC: LED fluorescence illumination kit, configured for fluorophores such as DAPI, FITC , TRITC & Cy5, instant on/off with the ability to optimize intensity & minimize sample damage via the simple desktop Control Pod with a manual control pod and power supply (Included in TC-5500CL & TC-5600CL models).
  PE-300L/LEDTC features:
- Direct fit to the microscope in seconds
- Broad spectrun - covers UV (DAPI) to Red region (Cy5)
- No alignment, a once only adjustment
- Instant on/off - no shutters required, no warm up or cool down
- Stable and repeatable - reliable and precise results
- Fine intensity control in 1% steps (0-100%) - no ND filters required
- Excellent uniformity over field of view - fixed and stable, no alignment necessary
   • TC-RF36: UV PROTECTION FILTER
   • MA863: Cobalt clear filter in mount in 51mm mount
   • STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
   • MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
   • MA196: ND50 Neutral density filter, unmounted
   • MA809/10: Removable AC Electric cord with plug for 115V models
   • MA326: Bulb 6V 30W Halogen (Factory Installed)
   • MA327: Fuse 3 Amp (Factory Installed)

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
   • MA816/10: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) (Included with TC-5600) Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube)
   • MA1034: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
   • MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (25mm reticle mount)

Objectives for Fluorescence:
   • MA849: TC Planachromat F4X objective ∞/1.0 N.A. 0.13, F.L. 50.0, W.D. 17.5
   • MA852: TC Planachromat F40X objective ∞/1.0 N.A. 0.60, F.L. 5.0, W.D. 2.9
• MA846: TC Plan Semi Apo F40X objective ∞/1.0 N.A. 0.82

Condensers:
   • MA854: TC Condenser, N.A. 0.55, W.D. 20.5mm (For use with MA823 40X objective)

Filters:
   • MA197: ND13 Neutral density filter (Optional) (For use in TC5500, TC5600 filter slider)
   • MA860: ND25 Neutral density filter (Optional) (For use in TC5500, TC5600 filter slider)
   • MA856: LB100 Blue clear filter in 51mm mount
   • MA857: G533 Green clear filter in 51mm mount
   • MA858: ND25 Neutral density filter in 51mm mount

Miscellaneous:
   • MA809/20: Removable AC Electric cord with plug for 220V models (included in all 220V models) CAMERA ADAPTERS FOR “C” MOUNT TYPE CAMERAS
   • MA877: “C” mount type camera adapter for CCD/CMOS camera (No internal lens) (Magnification factor of 0.66X from TC5000 Series front camera port)
CAMERA ADAPTERS FOR DIGITAL STILL CAMERAS
   • MA868: Digital camera adapter for non “C” mount type cameras (52mm O.D. thread) For TC Series front camera port only: (Requires additional DCA adapter ring for your specific model of camera which are listed on the last two pages of the TC5000 section) CAMERA ADAPTERS FOR 35mm TYPE CAMERAS
   • MA869: 35mm SLR camera attachment Magnification at film plane is 2.23X of objective in use

Stages (Fixed 245mm x 180mm, plain stage is included with stand):
   • MA878: Replacement glass stage plate insert for plain stage - TC5000 Series (Round - 109mm diameter, 1.5mm thick with 44.3mm opening) (Fits plain stage only not for use with MA380/05)
   • MA380/05: Attachable mechanical stage, movement 112mm(X) x 72mm(Y) with test plate holder and drop-down coaxial X-Y controls.

COMPONENTS OFTEN PAIRED WITH THE MA380/05 MECHANICAL STAGE

Specimen Holders for use with MA380/05 Attachable Mechanical Stage (Rectangular Plate 129.74mm x 89.78 mm x 3mm):
   • MA382: Slide glass holder, 1”x 3”
   • MA383: Chamber holder (For 55mm x 80mm chamber)
   • MA384: Petri dish holder 35mm diameter
   • MA385: Petri dish holder 55mm diameter
   • MA387: Petri dish holder 65mm diameter
   • MA864: Terasaki plate holder (For 56mm x 87mm Terasaki plate)
   • MA378: Hemacytometer holder

Stage Micrometers:
   • MA285: Objective micrometer, 0.01mm ruling
• MA286: 0.04” divided into 40 units, 0.001
• MA285: 1mm divided into 100 parts

Eyepiece Micrometers:
   • MA523: Cross-line reticule, 25mm diameter
• MA506: Eyepiece micrometer, 10mm divided into 100 units, 25mm diameter
• MA509: Eyepiece micrometer 5mm divided into 100 units, 25mm diameter
• MA524: 10mm square divided into 100 parts, 1.0mm square, 25mm diameter
• MA542: Cross-line with 0.1mm graduations, 21mm diameter
