MA814/05 - Siedentopf Binocular Head for the IM7000 and IM7500 Series

MA814/05 Info:

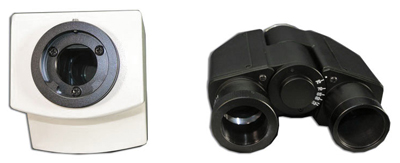

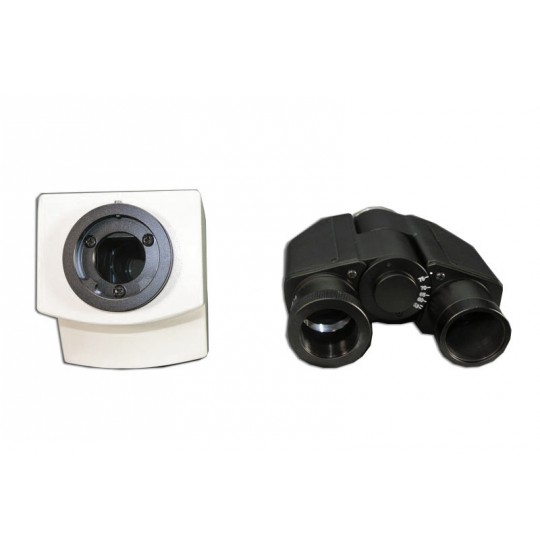

Siedentopf type binocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer.

Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Package Information:
• Weight: ~3lbs
• Box Dimensions: 15" x 11" x 9"

The IM7000 Series features include:

• All models come standard with ∞ Infinity Corrected Optical objectives (F=200)
• Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°. Interpupillary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
• Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option. Anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards
• Infinity Corrected Planachromat 5X, 10X, 20X and 50X objectives are standard in all units. Objectives are made with extra-low-dispersion glass ans utilize new advanced multilayer ani-reflection coatings. The advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting. The objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
• Quintuple Nosepiece , side facing, with positive precision detent, click stops
• Plain stage 180mm (X) x 245mm (Y) dimensions
• Optional Mechanical Stage with drop down post available, 112mm (X) x 72mm (Y) movement.
• Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
• Vertical Koehler illuminator equipped with 6V 30W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard.
• Cast aluminum alloy body for rigidity and exceptional stability

The IM7500 Series features include:

• All models come standard with ∞ Infinity Corrected Optical objectives (F=200) delivers bright, clear, high resolution images with superior contrast.
• Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°. Interpupillary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
• Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option. Anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards.  The newly designed eyepieces allow for a wide field of view observation, making it possible to see the whole image of an embedded resin sample.
• Infinity Corrected Brightfield/Darkfield  Plan. Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. Objectives are made with extra-low-dispersion glass and utilize new advanced multilayer anti-reflection coatings. The advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting. The objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
• Quintuple Nosepiece, side facing, with positive precision detent, click stops
• Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls
• Circular Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening
• Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
• Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard
• Cast aluminum alloy body for rigidity and exceptional stability

OPTIONAL COMPONENTS & ACCESSORIES BELOW FOR IM7000 SERIES

Viewing Heads:
   • MA957/20: Ergonomic binocular Siedentopf head, erect image, eyepiece inclination adjustable vertically from 10° to 50°, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube with depolarizer (30mm I.D. eyetubes)
   • MA1034: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)
   • MA814/05: Siedentopf type binocular head – inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter  on left eyetube (30mm I.D. eyetubes) with depolarizer

Eyepieces:
   • MA818: SWH 15X, widefield, high eyepoint eyepiece (each) Field No. 16 (MA818 accepts 19mm diameter reticle)
   • MA819: SWH 20X, widefield, high eyepoint eyepiece (each) Field No. 12 (MA819 accepts 19mm diameter reticle)
   • MA859: SWF 10X-F, focusing widefield, high eyepoint eyepiece (each) Field No. 22 (MA859 accepts 25mm diameter reticle)

Brightfield Objectives:
   • MA874: Planachromat E100X ∞ objective N.A. 0.90, F.L. 2.0, W.D. 0.34

Eyepiece Micrometer:
   • MA738: Eyepiece micrometer, for grain sizing in steel, 25mm diameter

Stages (Fixed 245mm x 180mm Stage is included with stand):
   • MA875: Attachable mechanical stage, 112mm (X) x 71mm (Y) movement, with drop down right hand coaxial controls (Optional) (Requires MA876 stage insert)
   • MA876: Metal stage plate insert for MA875 attachable mechanical stage for IM7000 Series (Circular Insert - 74.94 mm diameter black anodized ring with 63.8mm silver keyhole insert)

Bulbs and Fuses:
   • MA326: Spare bulb 6V 30W halogen lamp (Transmitted light)
   • MA327: pare Fuse 3A for transmitted light halogen Illuminator

OPTIONAL COMPONENTS & ACCESSORIES BELOW FOR IM7500 SERIES

Viewing Heads:
   • MA816/15: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube) Inverted image (Included in Model IM7530 )
   • MA957/20: Ergonomic binocular Siedentopf head, erect image, inclination adjustable vertically from 10° to 50°, I.P. adjustment 53mm to 75mm,
graduated diopter on left eyetube (30mm I.D. eyetubes) (Optional viewing head) (Included in Model IM7510 with depolarizer)
   • MA1031: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer (Optional viewing head) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X, widefield, high eyepoint eyepiece (each) Field No. 16 (MA818 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA819: SWH 20X, widefield, high eyepoint eyepiece (each) Field No. 12 (MA819 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA859: SWF 10X-F, focusing widefield, high eyepoint eyepiece (each) Field No. 22 (MA859 accepts 25mm diameter reticle) (30mm I.D. eyetubes)

Brightfield/Darkfield Objectives:
   • MA989: Plan Semi Apo Epi BD 100X ∞ objective N.A. 0.90, F.L. 2.0, W.D. 0.50

Adapter Ring:
   • MA686/05: Adapter ring to mount RMS thread objectives to BF/DF nosepiece

Eyepiece Micrometers:
   • MA523: Cross-line reticle, 25mm diameter
   • MA506: 10mm line divided into 100 units, 25mm diameter
   • MA509: 5mm line divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 400 parts, 0.5mm squares, 25mm diameter
   • MA510: 10mm square divides into 100 parts, 1.0mm squares, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 25mm diameter
   • MA738: Grain sizing reticle for steel, 25mm diameter

Stage Micrometers:
   • MA285: 1mm line divided into 100 units, each division 0.01mm
   •MA286: 0.04” divided into 40 units, each division 0.001”

Bulbs and Fuses:
   • MA275/05: Halogen bulb, 12V / 50W (Included in 50W models)
   • MA327: Fuse 3A (Included in 50W models), replacement
