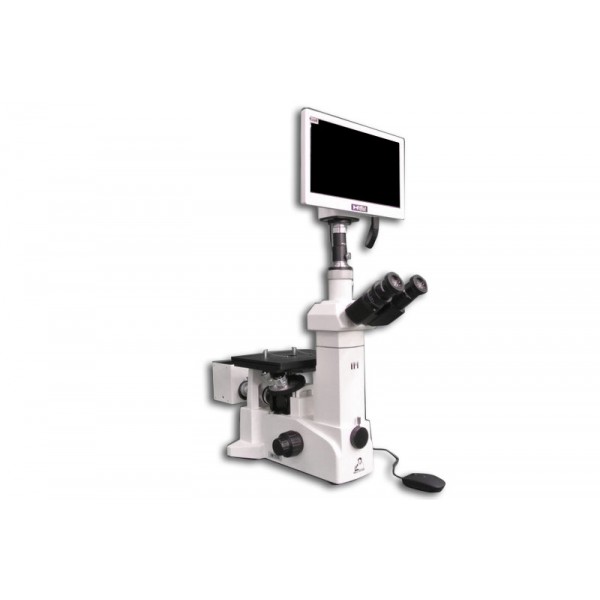

IM7530-HD1500MET-M-AF/0.3 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD1500MET-M-AF)

Includes:
   • IM7530: Trinocular Brightfield /Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan.  Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units.  All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator.  An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast.
   • HD1500MET-M-AF: The HD1500MET-M-AF is our full featured 6 MP camera with a 1/2.8” CMOS chip. The HD1500MET-M-AF features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps (frams per second) when connected via HDMI or 30fps when connected via USB2.0, so there is absolutely no lag in the live video feed when moving your specimen or part. Included with the 11.8” High Definition display is a mounting kit that allows the display to be mounted directly in front of the HD1500MET-M-AF.
   • MA151/35/03: C-mount adapter with 0.3X lens
   • MA816/05: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter

   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm

   • MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
   • MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
   • MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
   • MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
   • Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)

   • MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
   • MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)

   • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot
   • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
   • MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
   • Stage: Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)

   • Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters
   • MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
   • MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
   • MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
   • MA809/10: Removable AC Electric cord with plug for 115V models or
   • MA809/20: Removable AC Electric cord with plug for 220 models
   • MA1014: Dust cover for IM7500
   • Manual: IM7500 Meiji Techno Instruction Manual
   • Warranty: Limited Lifetime Warranty Card

The IM7500 Series features include:

• All models come standard with ∞ Infinity Corrected Optical objectives (F=200) delivers bright, clear, high resolution images with superior contrast.
• Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°. Interpupillary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
• Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option. Anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards.  The newly designed eyepieces allow for a wide field of view observation, making it possible to see the whole image of an embedded resin sample.
• Infinity Corrected Brightfield/Darkfield  Plan. Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. Objectives are made with extra-low-dispersion glass and utilize new advanced multilayer anti-reflection coatings. The advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting. The objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
• Quintuple Nosepiece, side facing, with positive precision detent, click stops
• Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls
• Circular Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening
• Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
• Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard
• Cast aluminum alloy body for rigidity and exceptional stability

Included:
   • IM7530: Trinocular Brightfield /Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan.  Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units.  All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator.  An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast.
   • MA816/05: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter
   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
   • MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
   • MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
   • MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
   • MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
   • Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)
   • MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
   • MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)
   • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot   •
   • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
   • MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
   • Stage: Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)
   • Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters
   • MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
   • MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
   • MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
   • MA809/10: Removable AC Electric cord with plug for 115V models or
   • MA809/20: Removable AC Electric cord with plug for 220 models
   • MA1014: Dust cover for IM7500
   • HD1500MET-M-AF: The HD1500MET-M-AF is our full featured 6 MP camera with a 1/2.8” CMOS chip. The HD1500MET-M-AF features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps (frams per second) when connected via HDMI or 30fps when connected via USB2.0, so there is absolutely no lag in the live video feed when moving your specimen or part. Included with the 11.8” High Definition display is a mounting kit that allows the display to be mounted directly in front of the HD1500MET-M-AF.
   • MA151/35/03: C-mount adapter with 0.3X lens

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
   • MA814/05: Siedentopf type binocular head – inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer
   • MA957/20: Ergonomic binocular Siedentopf head, erect image, inclination adjustable vertically from 10° to 50°, I.P. adjustment 53mm to 75mm,
graduated diopter on left eyetube (30mm I.D. eyetubes) (Optional viewing head) (Included in Model IM7510 with depolarizer)
   • MA1031: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer (Optional viewing head) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X, widefield, high eyepoint eyepiece (each) Field No. 16 (MA818 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA819: SWH 20X, widefield, high eyepoint eyepiece (each) Field No. 12 (MA819 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA859: SWF 10X-F, focusing widefield, high eyepoint eyepiece (each) Field No. 22 (MA859 accepts 25mm diameter reticle) (30mm I.D. eyetubes)

Brightfield/Darkfield Objectives:
   • MA989: Plan Semi Apo Epi BD 100X ∞ objective N.A. 0.90, F.L. 2.0, W.D. 0.50

Adapter Ring:
   • MA686/05: Adapter ring to mount RMS thread objectives to BF/DF nosepiece

Eyepiece Micrometers:
   • MA523: Cross-line reticle, 25mm diameter
   • MA506: 10mm line divided into 100 units, 25mm diameter
   • MA509: 5mm line divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 400 parts, 0.5mm squares, 25mm diameter
   • MA510: 10mm square divides into 100 parts, 1.0mm squares, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 25mm diameter
   • MA738: Grain sizing reticle for steel, 25mm diameter

Stage Micrometers:
   • MA285: 1mm line divided into 100 units, each division 0.01mm
   •MA286: 0.04” divided into 40 units, each division 0.001”

Bulbs and Fuses:
   • MA275/05: Halogen bulb, 12V / 50W (Included in 50W models)
   • MA327: Fuse 3A (Included in 50W models), replacement
