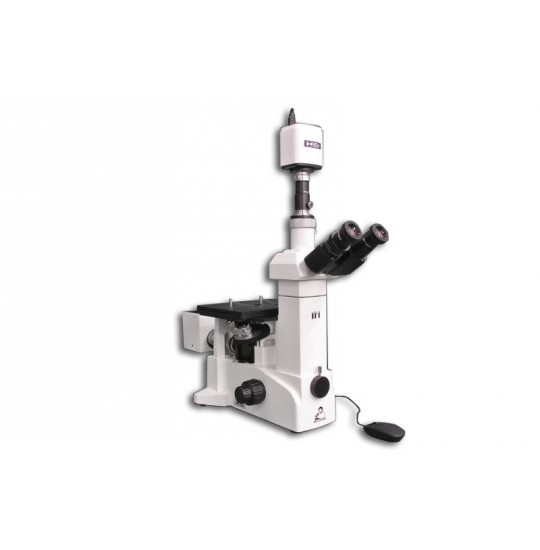

IM7530-HD1500MET/0.3 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD1500MET)

IM7530-HD1500MET/0.3 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD1500MET)

This configuration consists of the IM7530 and the HD1500MET Camera. The Meiji Techno IM7500 Series Inverted Brightfield/Darkfield and simple Polarizing 12V/ 50W Metallurgical Microscope have an ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The 50W illuminator affords a brighter image as of a competitive 12V 100W system, reducing power consumption by almost 50 percent. The IM7500 Series is designed to meet your most diverse needs for materials research. Meiji’s IM Series is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as, microstructural observation, and analysis and evaluation of a variety of metallurgical metals ceramics, polymers and various materials testing, QA and QC examination and photomicrography. The IM7500 Series offers crisp, distortion-free, high resolution images in multiple modes of operation the built in photo port on the front of the body makes image documentation quick and easy.

The HD1500MET is our full featured 6 MP camera with a 1/3” CMOS chip. The HD1500MET features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI. Hence, there is absolutely no lag in the live video feed when moving your specimen or part.

The HD1500MET is equipped with a complete Metrics Measurement software that can be utilized when connecting directly to a PC or through the camera connected to a monitor via HDMI. The HD1500MET provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bi-circles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make measurements more convenient and simple.

NOTE:
• 6MP Still resolution 3264x1836
• 2MP Live video 1920x1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920x1080 30 fps (frames per second) via USB2.0

Made In Japan

IM7530-HD1500MET/0.3 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD1500MET)

Model	Head	Type	Illumination	Eyepieces	Objectives	Stage
IM7100	Binocular	Brightfield	Koehler Vertical 6 volt 30 watt halogen	SWH10x FN22	Planachromat E5X, E10X, E20X, E50X,	Fixed flat-top 180mm X 245mm
IM7100E	Ergonomic Binocular
IM7200	Ergonomic Trinocular
IM7520	Binocular	Brightfield/Darkfield	Koehler Vertical 12 volt 50 watt halogen		Planachromat BD E5X, BD E10X, BD E20X, BD LWD E50X	Fixed mechanical 224mm(x) X 174mm(y)
IM7510	Ergonomic Binocular
IM7530	Ergonomic Trinocular

Includes:
   • IM7530: Trinocular Brightfield /Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast.
• HD1500MET: The HD1500MET is our full featured 6 MP camera with a 1/3” CMOS chip. The HD1500MET features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI. Hence, there is absolutely no lag in the live video feed when moving your specimen or part.
• MA151/35/03: C-mount adapter with 0.3X lens
   • MA816/05: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter

   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm

   • MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
   • MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
   • MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
   • MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
   • Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)

   • MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
   • MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)

   • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot
   • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
   • MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
   • Stage: Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)

   • Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters
   • MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
   • MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
   • MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
   • MA809/10: Removable AC Electric cord with plug for 115V models or
   • MA809/20: Removable AC Electric cord with plug for 220 models
   • MA1014: Dust cover for IM7500
   • Manual: IM7500 Meiji Techno Instruction Manual
   • Warranty: Limited Lifetime Warranty Card

VIEWING HEADS
The binocular model, the IM7510, incorporates the MA957/20 Ergonomic Siedentopf binocular head with inclination adjustable vertically from 10° to 50°. The trinocular model, the IM7520, has the MA979 Siedentopf-type trinocular head with eyetubes inclined at 30 degrees. The MA979 uses a 0/100 beamsplitter (100% to eyetubes or 100% to phototube) that can be engaged for photomicroscopy. Both microscope heads' left eyetubes have graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Standard objectives are the newly designed Planachromat EPI Infinity Corrected objectives for brightfield and darkfield observation modes. Infinity tube lens: F = 200mm.

STAGE
The standard fixed mechanical stage measures 224mm(x) by 184mm(y), with 50mm(x) by 40mm(y) movement. The mechanical stage features ergonomically positioned right-handed coaxial drop down controls.

ILLUMINATION
A powerful Koehler method vertical illuminator with 12 volt 50 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations. Adjustable brightness control and automatic voltage sensing power supply are standard.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

HD1500MET Info:
   • HD1500MET Camera
   • 11.8in HDMI Monitor
   • HDMI Cable
   • USB Cable
   • 12V AC/DC Power adapter
   • SD Card
   • Mouse
   • Application Metrics Software ISCapture
   • Packing Box

MULTIFORM MEASUREMENT TOOLS
The HD1500MET provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make the measurements more convenient and simple.

MICRON LEVEL MEASUREMENT ACCURACY
The HD1500MET is capable of delivering measurements with a resolution of 10 nanometers which provides an incredible metrology capability in the most demanding situations.

MEASUREMENT FOR VARIOUS APPLICATIONS
In addition µm, the HD1500MET also provides calibrations in mm and cm, which will meet various measurement requirements in different applications. And these results provide objective and reliable data to support quantitative analysis.

CONVENIENT MEASUREMENT DATA MANAGEMENT
Two measurement results exporting modes (Excel and text) make the measurement data management more convenient.

30FPS HIGH SPEED LIVE IMAGE
With 30fps data transfer at an uncompressed resolution of 1920X1080, sets a precedent. It is one of the fastest USB2.0 cameras in the world.

EXCELLENT CAPABILITY FOR FLUORESCENCE
Taking advantage of the ultra high signal to noise ratio sensor, the HD1500MET provides for up to 10 seconds exposure time and gets finest detailed images, even for low light fluorescence.

3D NOISE REDUCTION
Longer exposure times increase the image noise. But the integrated 3D noise reduction function keeps the image always clean and sharp.

1080P VIDEO RECORDING
Just click the button to start recording 1080P videos at 30fps. The recorded video files will be saved to the high speed SD card. It is also possible to play back the videos from the SD card directly.

SUPERB SMART CAMERA
It automatically analyzes the acquired images, optimizes the white balance, exposure time and saturation to present perfect images. Whatever, for bright field or dark field applications, ideal images can be captured, barely needing any parameter adjustments.

SIMPLE OPERATIONS
The embedded user interface is so simple that not even one mouse click is required to bring up the two simple menus. There are only two icons on the splash, one for capture, the for settings.

Model	Type	Version	Mega Pixels	Resolution	Frame Rate (FPS)	Sensor	C" Mount
HD1500T	HDMI/USB 2.0	Color	2-6MP	3264 x 1840 Static 1920 x 1080 Dynamic	60fps by HDMI 30fps by USB 2.0	1/2.8" CMOS	0.3X
HD1500TM with 11.8" HDMI montior	HDMI/USB 2.0	Color	2-6MP	3264 x 1840 Static 1920 x 1080 Dynamic	60fps by HDMI 30fps by USB 2.0	1/2.8" CMOS	0.3X
HD1500MET	HDMI/USB 2.0	Color	2-6MP	3264 x 1840 Static 1920 x 1080 Dynamic	60fps by HDMI 30fps by USB 2.0	1/2.8" CMOS	0.3X
HD1500MET-M with 11.8" HDMI montior	HDMI/USB 2.0	Color	2-6MP	3264 x 1840 Static 1920 x 1080 Dynamic	60fps by HDMI 30fps by USB 2.0	1/2.8" CMOS	0.3X
HD1500MET-AF (Autofocus/Continuous 1-shot)	HDMI/USB2.0	Color	2-6MP	3264 x 1840 Static 1920 x 1080 Dynamic	60fps by HDMI 30fps by USB 2.0	1/2.8" CMOS	0.3X
HD1500MET-M-AF (Autofocus/Continuous 1-shot/with 11.8" monitor)	HDMI/USB2.0	Color	2-6MP	3264 x 1840 Static 1920 x 1080 Dynamic	60fps by HDMI 30fps by USB 2.0	1/2.8" CMOS	0.3X
HD1000-LITE	HDMI/USB 2.0	Color	5MP	2592 x 1944	15fps by HDMI 15fps by USB 2.0	1/2.5" CMOS	0.3X
HD1000-LITE-M with 11.8" HDMI montior	HDMI/USB 2.0	Color	5MP	2592 x 1944	15fps by HDMI 15fps by USB 2.0	1/2.5" CMOS	0.3X
HD1600T	USB 3.0	Color	16MP	4608 x 3456	25fps by USB 3.0	1/2.33" CMOS	0.3X
SS500-MC	Wifi	Color	5MP	2912 x 1640	60fps by Wifi	1/2.3" CMOS	0.3X
WF300 Eyepiece Camera	Wifi	Color	8MP	3200 x 2400	60fps by USB 2.0 30fps by Wifi	1/2.8" CMOS	20-43mm Eyepiece Mount
WF200	Wifi	Color	5MP	2592 x 1944	40fps by USB 2.0 15fps by Wifi	1/2.8" CMOS	0.3X
WF100 Document Scanner	Wifi	Color	5MP	2592 x 1944	30fps by Wifi	-	-
X-1000U	USB 2.0	Color	5MP	2592 x 1911	10fps by USB 2.0	1/2.8" CMOS	0.3X
MIS-PL-DV24	USB 2.0	Color	2MP	1600 x 1200	30fps by USB 2.0	1/2" CMOS	0.5X
DK-LITE-B	USB 2.0	Color	1.5MP	1440 x 1080	10fps by USB 2.0	1/2.5" CMOS	0.5X
DK1000CB	USB 2.0	Color	2MP	1600 x 1200	15fps by USB 2.0	1/2" CMOS	0.5X
DK1000M	USB 2.0	Monochrome	1.3MP	1280 x 1024	30fps by USB 2.0	1/2" CMOS	0.5X
DK3000C	USB 2.0	Color	3.1MP	2048 x 1536	12fps by USB 2.0	1/2" CMOS	0.5X
DK5000C	USB 2.0	Color	5MP	2592 x 1944	5fps by USB 2.0	1/2.5" CMOS	0.7X
HD2000C	USB 2.0	Color	2MP	1920 x 1080	60fps by USB 2.0	1/3" CMOS	0.3X
ST1000C	USB 3.0	Color	5MP	2592 x 1944	60fps by USB 3.0	1/2.5" CMOS	0.5X

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

IM7530 Package Information:
   • Weight: 33lbs (9.06kg)
   • Box Size: 16 x 14 x 21 inches
   • Footprint: 364mm (D) x 220mm (W)
   • Binocular head type: 485 mm(D) x 411 mm (H) x 220 mm(W) (8.0kg)( 29.0 lbs.)
   • Trinocular head type: 485 mm(D) x 440 mm(H) x 2210 mm(W) (8.5Kg)(31.0 lbs.)
   • Binocular Ergonomic head type: 485 mm(D) x 440mm(H) x 2210mm(W) (8.5Kg)(31.0 lbs)<./p>

HD1500MET Package Information:
• 3lbs
• 12 x 10 x 4 inches

Details

The IM7500 Series features include:

All models come standard with ∞ Infinity Corrected Optical objectives (F=200) delivers bright, clear, high resolution images with superior contrast.
Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°. Interpupillary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option. Anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards. The newly designed eyepieces allow for a wide field of view observation, making it possible to see the whole image of an embedded resin sample.
Infinity Corrected Brightfield/Darkfield Plan. Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. Objectives are made with extra-low-dispersion glass and utilize new advanced multilayer anti-reflection coatings. The advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting. The objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
Quintuple Nosepiece, side facing, with positive precision detent, click stops
Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls
Circular Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening
Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard
Cast aluminum alloy body for rigidity and exceptional stability

Details

Model	Head	Type	Illumination	Eyepieces	Objectives	Stage
IM7100	Binocular	Brightfield	Koehler Vertical 6 volt 30 watt halogen	SWH10x FN22	Planachromat E5X, E10X, E20X, E50X,	Fixed flat-top 180mm X 245mm
IM7100E	Ergonomic Binocular
IM7200	Ergonomic Trinocular
IM7520	Binocular	Brightfield/Darkfield	Koehler Vertical 12 volt 50 watt halogen		Planachromat BD E5X, BD E10X, BD E20X, BD LWD E50X	Fixed mechanical 224mm(x) X 174mm(y)
IM7510	Ergonomic Binocular
IM7530	Ergonomic Trinocular

Components & Accessories

Included:
• IM7530: Trinocular Brightfield /Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast.
   • MA816/05: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter
   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
   • MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
   • MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
   • MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
   • MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
   • Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)
   • MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
   • MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)
   • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot   •
   • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
   • MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
   • Stage: Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)
   • Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters
   • MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
   • MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
   • MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
   • MA809/10: Removable AC Electric cord with plug for 115V models or
   • MA809/20: Removable AC Electric cord with plug for 220 models
   • MA1014: Dust cover for IM7500
• HD1500MET: The HD1500MET is our full featured 6 MP camera with a 1/3” CMOS chip. The HD1500MET features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI. Hence, there is absolutely no lag in the live video feed when moving your specimen or part.
• MA151/35/03: C-mount adapter with 0.3X lens

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
• MA814/05: Siedentopf type binocular head – inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer
   • MA957/20: Ergonomic binocular Siedentopf head, erect image, inclination adjustable vertically from 10° to 50°, I.P. adjustment 53mm to 75mm,
graduated diopter on left eyetube (30mm I.D. eyetubes) (Optional viewing head) (Included in Model IM7510 with depolarizer)
   • MA1031: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer (Optional viewing head) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X, widefield, high eyepoint eyepiece (each) Field No. 16 (MA818 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA819: SWH 20X, widefield, high eyepoint eyepiece (each) Field No. 12 (MA819 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA859: SWF 10X-F, focusing widefield, high eyepoint eyepiece (each) Field No. 22 (MA859 accepts 25mm diameter reticle) (30mm I.D. eyetubes)

Brightfield/Darkfield Objectives:
   • MA989: Plan Semi Apo Epi BD 100X ∞ objective N.A. 0.90, F.L. 2.0, W.D. 0.50

Adapter Ring:
   • MA686/05: Adapter ring to mount RMS thread objectives to BF/DF nosepiece

Eyepiece Micrometers:
   • MA523: Cross-line reticle, 25mm diameter
   • MA506: 10mm line divided into 100 units, 25mm diameter
   • MA509: 5mm line divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 400 parts, 0.5mm squares, 25mm diameter
   • MA510: 10mm square divides into 100 parts, 1.0mm squares, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 25mm diameter
   • MA738: Grain sizing reticle for steel, 25mm diameter

Stage Micrometers:
   • MA285: 1mm line divided into 100 units, each division 0.01mm
   •MA286: 0.04” divided into 40 units, each division 0.001”

Bulbs and Fuses:
   • MA275/05: Halogen bulb, 12V / 50W (Included in 50W models)
   • MA327: Fuse 3A (Included in 50W models), replacement
