IM7530-HD2500T/0.7 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD2500T)

IM7530-HD2500T/0.7 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD2500T)

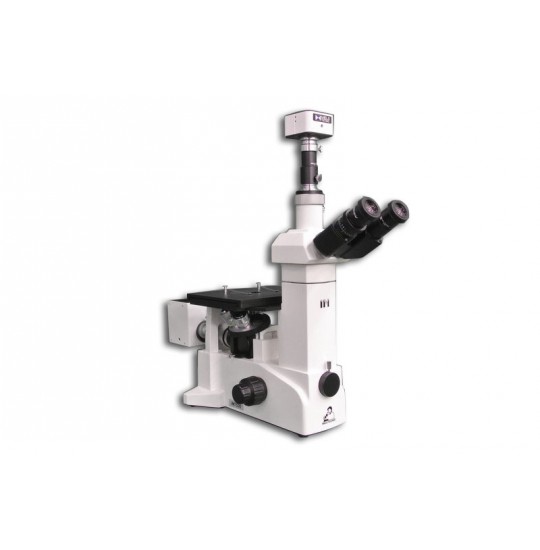

This configuration consists of the IM7530 and the HD2500T Camera. The Meiji Techno IM7500 Series Inverted Brightfield/Darkfield and simple Polarizing 12V/ 50W Metallurgical Microscope have an ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The 50W illuminator affords a brighter image as of a competitive 12V 100W system, reducing power consumption by almost 50 percent. The IM7500 Series is designed to meet your most diverse needs for materials research. Meiji’s IM Series is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as, microstructural observation, and analysis and evaluation of a variety of metallurgical metals ceramics, polymers and various materials testing, QA and QC examination and photomicrography. The IM7500 Series offers crisp, distortion-free, high resolution images in multiple modes of operation the built in photo port on the front of the body makes image documentation quick and easy.

The HD2500T is our full featured 5 MP camera with a 2/3” CMOS chip Color Camera . A 0.7X C” mount adapter (MA151/35/20) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD2500T features a full (2448 (H) x 2048 (V) resolution, which provides high fidelity images with a refresh rate of 35fps@ 5MP frames per second when connected via USB 3.0 , so there is absolutely no lag in the live video feed when moving your specimen or part. Shutter Mode is Global.

The HD2500T can be mounted directly to PC via USB 3.0 connectivity, with this the user can access menus that provide all the features of the camera such as: Intelligent 12-bit ISP color reproduction, Real time depth of field fusion, Real time image stitching, Real time fluorescence image synthesis and editing, HDR image synthesis, Micro-imaging based intelligent automatic exposure, Smart Measurement workflow, Implements multiple iterations of workflow execution, Supports single shot, integral camera , delayed camera, Automatic video and delay video generation, Output format selection, User parameter group save and load, Dynamic/ static measurement, layered measurement, Supports measuring gauges, layers , precision , naming, style, Implements drawing: points, lines, rectangles, polygons, circles, arcs, angles, Data export as TXT or Excel, Report generation and printing. Automatic Set of Exposure, Color Scale, White Balance . Manual Set of Exposure , Gain, Noise Reduction, Gamma, Flat Field Correction. Supports Windows/ Linux/ MAC . Operating Temperature 0-60 °C. Accepts a Standard C” mount . Meticulous CNC arc processing, Environmental protection spraying body, Stainless steel female C mount ring.

NOTE:
• 5MP Still resolution 2448 x 2048
• 5MP Live video 35 fps (frames per second) via USB 3.0

Made In Japan

IM7530-HD2500T/0.7 50X - 500X Trinocular Inverted Brightfield/Darkfield Metallurgical Microscope and HD Camera (HD2500T)

Model	Head	Type	Illumination	Eyepieces	Objectives	Stage
IM7100	Binocular	Brightfield	Koehler Vertical 6 volt 30 watt halogen	SWH10x FN22	Planachromat E5X, E10X, E20X, E50X,	Fixed flat-top 180mm X 245mm
IM7100E	Ergonomic Binocular
IM7200	Ergonomic Trinocular
IM7520	Binocular	Brightfield/Darkfield	Koehler Vertical 12 volt 50 watt halogen		Planachromat BD E5X, BD E10X, BD E20X, BD LWD E50X	Fixed mechanical 224mm(x) X 174mm(y)
IM7510	Ergonomic Binocular
IM7530	Ergonomic Trinocular

Includes:
   • IM7530: Trinocular Brightfield /Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast.
• HD2500T: The HD2500T is our full featured 5 MP camera with a 2/3” CMOS chip Color Camera. The HD2500T features a full (2448 (H) x 2048 (V) resolution, which provides high fidelity images with a refresh rate of 35fps@ 5MP frames per second when connected via USB 3.0 , so there is absolutely no lag in the live video feed when moving your specimen or part. Shutter Mode is Global.
• MA151/35/20: C-mount adapter with 0.7X lens
   • MA816/05: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter

   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm

   • MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
   • MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
   • MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
   • MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
   • Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)

   • MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
   • MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)

   • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot
   • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
   • MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
   • Stage: Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)

   • Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters
   • MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
   • MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
   • MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
   • MA809/10: Removable AC Electric cord with plug for 115V models or
   • MA809/20: Removable AC Electric cord with plug for 220 models
   • MA1014: Dust cover for IM7500
   • Manual: IM7500 Meiji Techno Instruction Manual
   • Warranty: Limited Lifetime Warranty Card

VIEWING HEADS
The binocular model, the IM7510, incorporates the MA957/20 Ergonomic Siedentopf binocular head with inclination adjustable vertically from 10° to 50°. The trinocular model, the IM7520, has the MA979 Siedentopf-type trinocular head with eyetubes inclined at 30 degrees. The MA979 uses a 0/100 beamsplitter (100% to eyetubes or 100% to phototube) that can be engaged for photomicroscopy. Both microscope heads' left eyetubes have graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Standard objectives are the newly designed Planachromat EPI Infinity Corrected objectives for brightfield and darkfield observation modes. Infinity tube lens: F = 200mm.

STAGE
The standard fixed mechanical stage measures 224mm(x) by 184mm(y), with 50mm(x) by 40mm(y) movement. The mechanical stage features ergonomically positioned right-handed coaxial drop down controls.

ILLUMINATION
A powerful Koehler method vertical illuminator with 12 volt 50 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations. Adjustable brightness control and automatic voltage sensing power supply are standard.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

HD2500T Information Specifications:

Product Model	HD2500T
Sensor Model	IMX264LQR-C
Sensor Type	CMOS
Sensor Size	2/3"
Color/Mono	Color
Pixel Size	3.45 x 3.45 (µm)
Resolution	2448(H) x 2048(V)
Frame	35fps@5MP
Shutter Mode	Global
Exposure Time	0.13ms-15s
Automatic Set	Exposure, Color Scale, White Balance
Manually Set	Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction
Color Temperature	2000-15000K
ADC Depth	12Bit
PC Software	Mosaic V 2.0
Picture Format	JPG/PNG/TIFF
Operating System	Windows/Linux/Mac
Multiple Cameras	Supports 4 Cameras Simultaneously
Data Interface	USB 3.0
Optical Interface	Standard C Mount
Camera Size	68 mm x 68 mm x 46 mm
Camera Weight	330g
Operating Temperature	0-60°C

Software Feature Function:
• Intelligent 12-bit ISP color reproduction
• Real-time depth of field fusion
• Real-time image stitching
• Real-time fluorescence image synthesis and editing
• HDR image systhesis
• Micro-imaging-based intelligent automatic exposure
• Smart measurement workflow
• Implements multiple iterations of workflow execution
• Supports single shot, integral camera, delayed camera
• Automatic video and delay video generation
• Output format selection
• User parameter group save and load
• Dynamic/ static measurement, layered measurement
• Supports measuring gauges, layers, precision, naming, style
• Implements drawng: points, lines, rectangles, polygons, circles, arcs, angle
• Data export as TXT or Excel
• Report generation and printing

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

IM7530 Package Information:
   • Weight: 33lbs (9.06kg)
   • Box Size: 16 x 14 x 21 inches
   • Footprint: 364mm (D) x 220mm (W)
   • Binocular head type: 485 mm(D) x 411 mm (H) x 220 mm(W) (8.0kg)( 29.0 lbs.)
   • Trinocular head type: 485 mm(D) x 440 mm(H) x 2210 mm(W) (8.5Kg)(31.0 lbs.)
   • Binocular Ergonomic head type: 485 mm(D) x 440mm(H) x 2210mm(W) (8.5Kg)(31.0 lbs)

HD2500T Information:
Camera Size: 68 x 68 x 46mm
Camera Weight: 330 g

Details

The IM7500 Series features include:

All models come standard with ∞ Infinity Corrected Optical objectives (F=200) delivers bright, clear, high resolution images with superior contrast.
Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°. Interpupillary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option. Anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards. The newly designed eyepieces allow for a wide field of view observation, making it possible to see the whole image of an embedded resin sample.
Infinity Corrected Brightfield/Darkfield Plan. Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. Objectives are made with extra-low-dispersion glass and utilize new advanced multilayer anti-reflection coatings. The advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting. The objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
Quintuple Nosepiece, side facing, with positive precision detent, click stops
Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls
Circular Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening
Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard
Cast aluminum alloy body for rigidity and exceptional stability

Details

Model	Head	Type	Illumination	Eyepieces	Objectives	Stage
IM7100	Binocular	Brightfield	Koehler Vertical 6 volt 30 watt halogen	SWH10x FN22	Planachromat E5X, E10X, E20X, E50X,	Fixed flat-top 180mm X 245mm
IM7100E	Ergonomic Binocular
IM7200	Ergonomic Trinocular
IM7520	Binocular	Brightfield/Darkfield	Koehler Vertical 12 volt 50 watt halogen		Planachromat BD E5X, BD E10X, BD E20X, BD LWD E50X	Fixed mechanical 224mm(x) X 174mm(y)
IM7510	Ergonomic Binocular
IM7530	Ergonomic Trinocular

Components & Accessories

Included:
• IM7530: Trinocular Brightfield /Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast.
   • MA816/05: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter
   • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
   • MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
   • MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
   • MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
   • MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0
   • Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)
   • MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
   • MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)
   • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot   •
   • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
   • MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
   • MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen
   • Stage: Mechanical Stage with 240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)
   • Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters
   • MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
   • MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
   • MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
   • MA809/10: Removable AC Electric cord with plug for 115V models or
   • MA809/20: Removable AC Electric cord with plug for 220 models
   • MA1014: Dust cover for IM7500
• HD2500T: The HD2500T is our full featured 5 MP camera with a 2/3” CMOS chip Color Camera. The HD2500T features a full (2448 (H) x 2048 (V) resolution, which provides high fidelity images with a refresh rate of 35fps@ 5MP frames per second when connected via USB 3.0 , so there is absolutely no lag in the live video feed when moving your specimen or part. Shutter Mode is Global.
• MA151/35/20: C-mount adapter with 0.7X lens

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
• MA814/05: Siedentopf type binocular head – inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer
   • MA957/20: Ergonomic binocular Siedentopf head, erect image, inclination adjustable vertically from 10° to 50°, I.P. adjustment 53mm to 75mm,
graduated diopter on left eyetube (30mm I.D. eyetubes) (Optional viewing head) (Included in Model IM7510 with depolarizer)
   • MA1031: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer (Optional viewing head) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces:
   • MA818: SWH 15X, widefield, high eyepoint eyepiece (each) Field No. 16 (MA818 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA819: SWH 20X, widefield, high eyepoint eyepiece (each) Field No. 12 (MA819 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
   • MA859: SWF 10X-F, focusing widefield, high eyepoint eyepiece (each) Field No. 22 (MA859 accepts 25mm diameter reticle) (30mm I.D. eyetubes)

Brightfield/Darkfield Objectives:
   • MA989: Plan Semi Apo Epi BD 100X ∞ objective N.A. 0.90, F.L. 2.0, W.D. 0.50

Adapter Ring:
   • MA686/05: Adapter ring to mount RMS thread objectives to BF/DF nosepiece

Eyepiece Micrometers:
   • MA523: Cross-line reticle, 25mm diameter
   • MA506: 10mm line divided into 100 units, 25mm diameter
   • MA509: 5mm line divided into 100 units, 25mm diameter
   • MA524: 10mm square divided into 400 parts, 0.5mm squares, 25mm diameter
   • MA510: 10mm square divides into 100 parts, 1.0mm squares, 25mm diameter
   • MA542: Cross-line with 0.1mm graduations, 25mm diameter
   • MA738: Grain sizing reticle for steel, 25mm diameter

Stage Micrometers:
   • MA285: 1mm line divided into 100 units, each division 0.01mm
   •MA286: 0.04” divided into 40 units, each division 0.001”

Bulbs and Fuses:
   • MA275/05: Halogen bulb, 12V / 50W (Included in 50W models)
   • MA327: Fuse 3A (Included in 50W models), replacement
