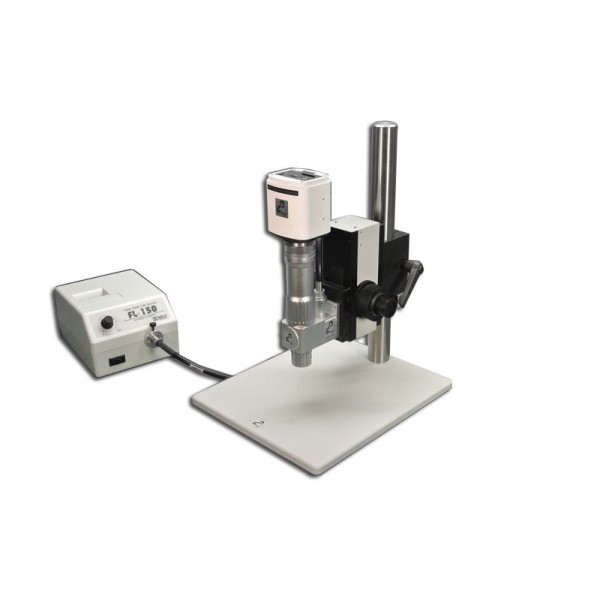

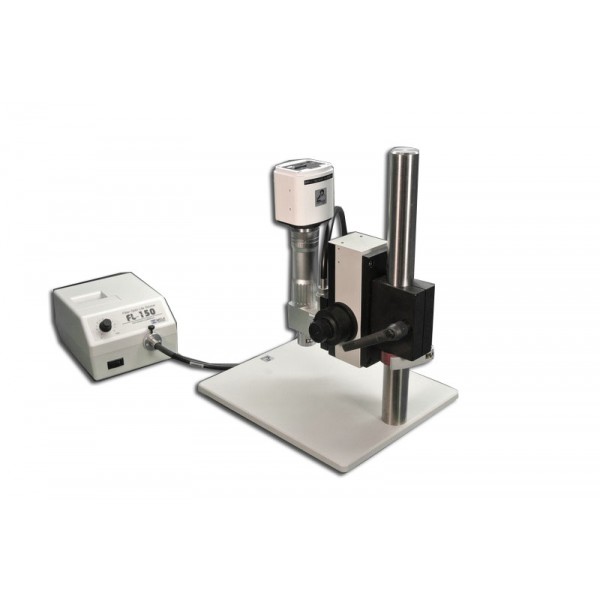

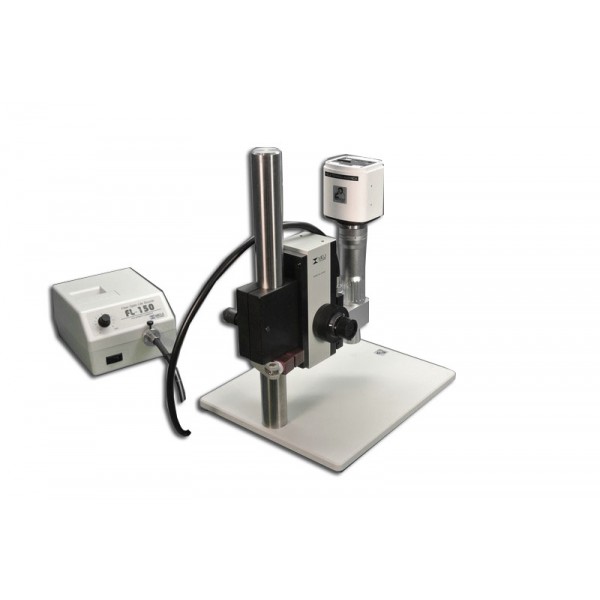

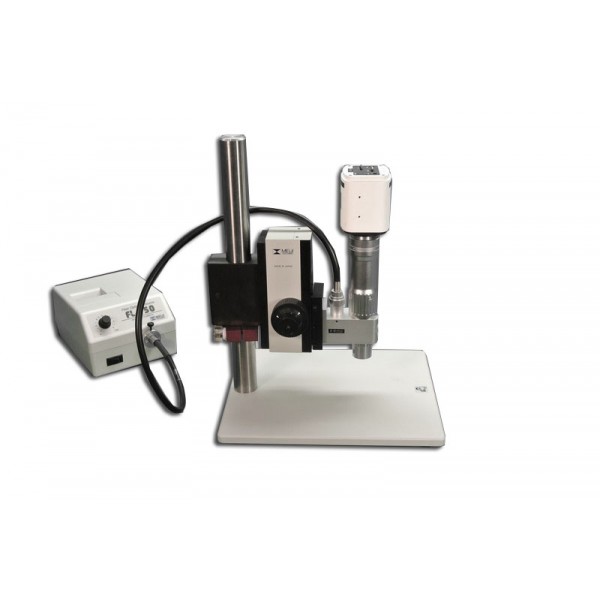

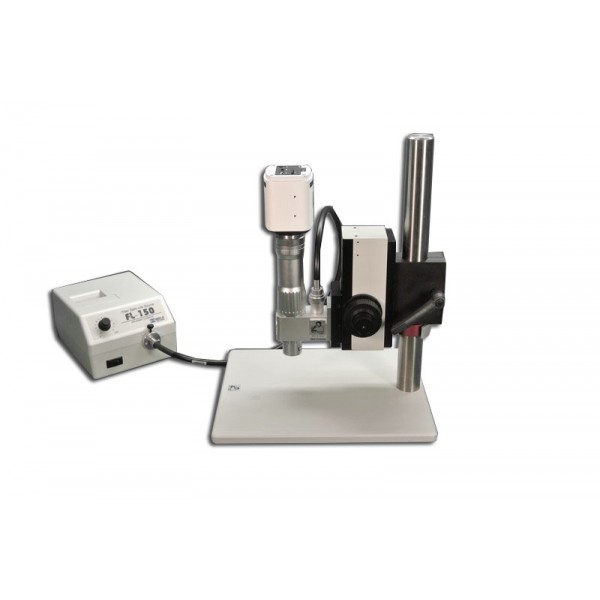

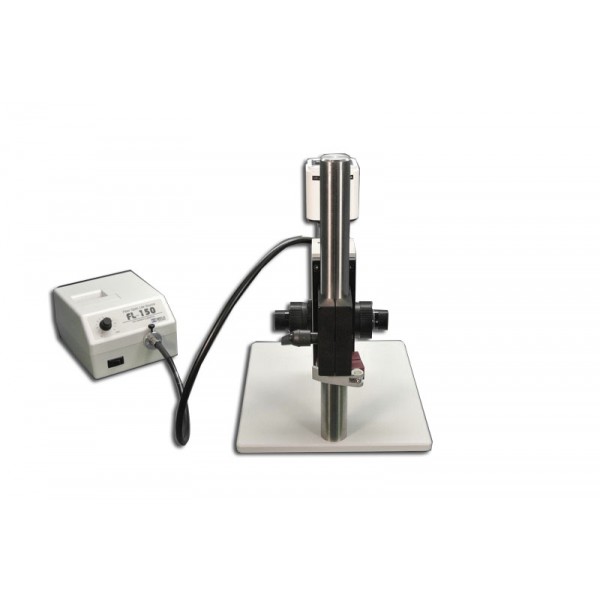

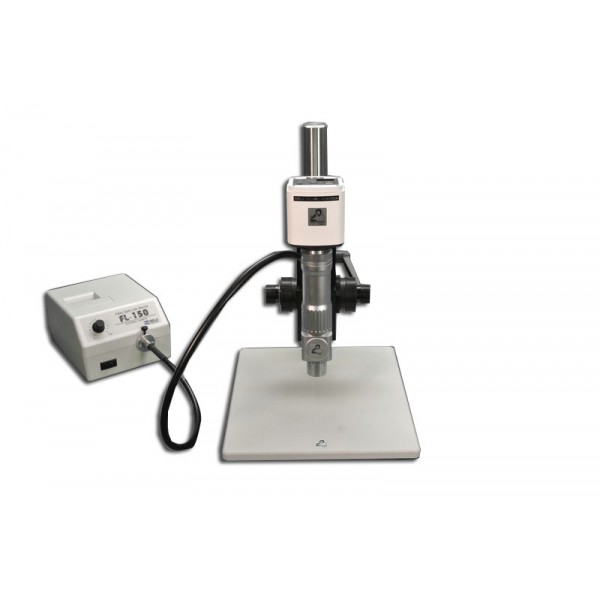

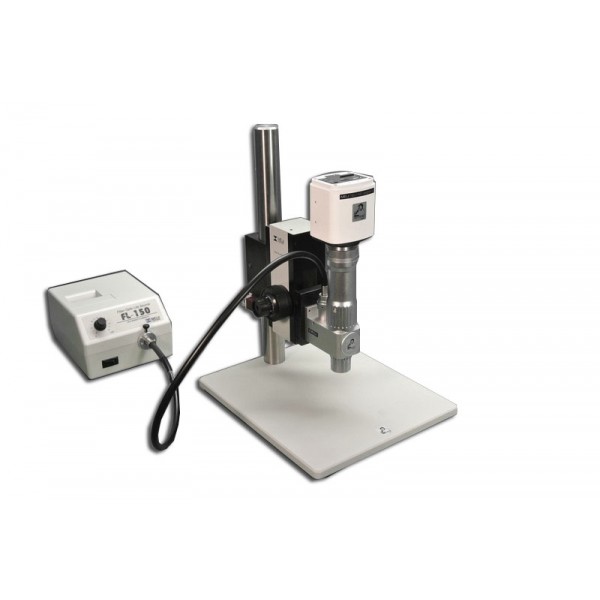

MC/DZ4-T + ZC15 + MAC-10 + HD1500MET + FL150/115 + FL150/95 High Zoom Microscope Configuration

In this configuration, the MC/DZ4-T is a combination of the DZ4-T body and the focus block (DZ-T/38). The DZ4-T is a zoom microscope body that has a magnification of 0.83X to 10X (zoom ratio 12:1). The DZ-T/38 is a coarse and fine focus block that fits a 38mm mounting post which are most of our pole stands. The ZC15 equipped with the DZ4-T is a 1.25X – 15X infinity objective. It gives the system a 75X – 900X total mag and a working distance of 46.2mm. The MAC-10 stand is a heavy duty stand that has a mounting bracket to accept optional such as the DZ-T/38 or the FU1010. The MAC-10 has a 16" height and 1.5" diameter stainless steel vertical post. It also has a quick release safety clamp. In addition, the FL150/115 attached is a unit that offers safe and hassle-free operation and mates securely with standard FL150/115 microscopy light guides, eliminating adapters. Standard FL150/115 provides a lamp life of over 200 hours at full intensity. This unit is available separately or as part of a complete fiber optic illumination system.

The HD1500MET is our full featured 6 MP camera with a 1/3” CMOS chip.  A 0.3X C-mount adapter (MA151/35/03) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD1500MET features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI. Hence, there is absolutely no lag in the live video feed when moving your specimen or part.

The HD1500MET is equipped with a complete Metrics Measurement software that can be utilized when connecting directly to a PC or through the camera connected to a monitor via HDMI. The HD1500MET provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bi-circles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make measurements more convenient and simple.

NOTE:
• 6MP Still resolution 3264x1836
• 2MP Live video 1920x1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920x1080 30 fps (frames per second) via USB2.0

NOTE:Additional items are needed to create a full DZ4-T microscope system. The following components are normally ordered:
• Zoom microscope body (DZ4-T)
• 20MM or 38MM coarse and fine focus holder/block
• Objectives (5X, 15X, 30X, 50X or 70X)
• Stands (Pole stands or wide surface stands)
• Illumination Source (Fiber Optic Halogen or Fiber Optic LED)
• Camera (CMOS or CCD with female C-mount or Analog type cameras)
• Manual stages or with Mitutoyo digimatic indicator for measurement (Optional)
• X and Y Axis Digimatic Indicator with 2” travel or Z Axis indicator with 0.5” travel (Optional)
• Digimatic counters available (Optional)


Locate a DealerGet a Quote

MC/DZ4-T + ZC15 + MAC-10 + HD1500MET + FL150/115 + FL150/95

MC/DZ4-T Info:

Zoom microscope body, Zoom Ratio 12:1 (0.83X – 10X) with DZ-T/38 focus block (Coarse and fine focus block (Fits 38mm mounting post))

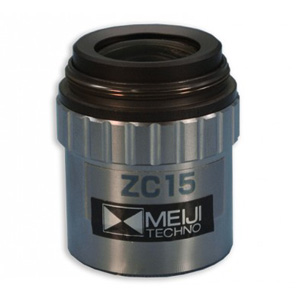

ZC15 Info:

1.25X – 15X objective ∞, 75X – 900X total mag, N.A. 0.03 – 0.2, W.D. 46.2mm

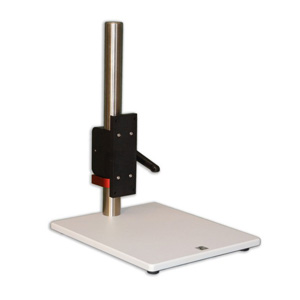

MAC-10 Info:

Included:
• Heavy Duty 11" x 13" x 0.5" base
• 16" stainless steel vertical post
• Mounting bracket that accepts a 38mm pole and also accepts a FU-1010 focus block
• Stable lbs base for stability and reduction of vibrations especially when high power objectives is engaged.
• 100% MADE IN USA
• Standard Heavy duty base on MC-45, MC-45T, MC-55 and MC-55T Tool Makers Microscopes
• Customer Support: 1-(800) 832-0060 (USA based)
• Weight: 18lbs
• Box Size: 18" x 15" x 10"

FL150/115 Info:


   • Warranty: 3 Year Warranty
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Weight: 9 lbs (4.0kg)
   • Box Size: 15 x 15 x 9 inches

Technical Information

Input:

 115 V AC (230 V AC optional)

Lamp:

 150 Watt, 21 V, EKE qtz halogen | EKE-X

Lamp Output:

 1750 Lumens at fiber optic plane

Color Temperature:

 3250° Kelvin at max intensity

Lamp Life:

 200 hrs | 1000 hrs

Fiber Optic Interface:

 15 mm or 25 mm

Noise Level:

 <25 dB

Intensity Control:

 Solid State 10 - 100%

Dimension/Weight:

 6.8” (W) X 5” (H) X 8.3” (D) (7.75 lbs)

Appovals:

 Curtis-Straus



FL150 Diaghram

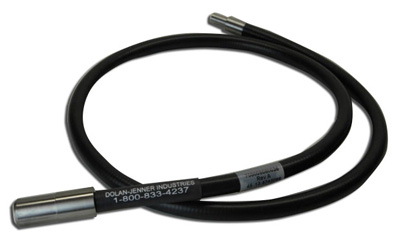

FL150/95 Info:

Single arm light guide (36” flexible), 4.75mm (0.18”) diameter fiber optic bundle

HD1500MET Info:
   • HD1500MET Camera
   • 11.8in HDMI Monitor
   • HDMI Cable
   • USB Cable
   • 12V AC/DC Power adapter
   • SD Card
   • Mouse
   • Application Metrics Software ISCapture
   • Packing Box

MULTIFORM MEASUREMENT TOOLS
The HD1500MET provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make the measurements more convenient and simple.

01



MICRON LEVEL MEASUREMENT ACCURACY
The HD1500MET is capable of delivering measurements with a resolution of 10 nanometers which provides an incredible metrology capability in the most demanding situations.

02

MEASUREMENT FOR VARIOUS APPLICATIONS
In addition µm, the HD1500MET also provides calibrations in mm and cm, which will meet various measurement requirements in different applications. And these results provide objective and reliable data to support quantitative analysis.

03

CONVENIENT MEASUREMENT DATA MANAGEMENT
Two measurement results exporting modes (Excel and text) make the measurement data management more convenient.

03

30FPS HIGH SPEED LIVE IMAGE
With 30fps data transfer at an uncompressed resolution of 1920X1080, sets a precedent. It is one of the fastest USB2.0 cameras in the world.

05

EXCELLENT CAPABILITY FOR FLUORESCENCE
Taking advantage of the ultra high signal to noise ratio sensor, the HD1500MET provides for up to 10 seconds exposure time and gets finest detailed images, even for low light fluorescence.

06

3D NOISE REDUCTION
Longer exposure times increase the image noise. But the integrated 3D noise reduction function keeps the image always clean and sharp.

06

1080P VIDEO RECORDING
Just click the button to start recording 1080P videos at 30fps. The recorded video files will be saved to the high speed SD card. It is also possible to play back the videos from the SD card directly.

06

SUPERB SMART CAMERA
It automatically analyzes the acquired images, optimizes the white balance, exposure time and saturation to present perfect images. Whatever, for bright field or dark field applications, ideal images can be captured, barely needing any parameter adjustments.

06

SIMPLE OPERATIONS
The embedded user interface is so simple that not even one mouse click is required to bring up the two simple menus. There are only two icons on the splash, one for capture, the for settings.

06



Model
Type
Version
Mega Pixels
Resolution
Frame Rate (FPS)
Sensor
C" Mount

HD1500T

HDMI/USB 2.0 Color 2-6MP 3264 x 1840 Static
1920 x 1080 Dynamic
60fps by HDMI
30fps by USB 2.0
1/2.8" CMOS 0.3X

HD1500TM
with 11.8" HDMI montior

HDMI/USB 2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

60fps by HDMI
30fps by USB 2.0
1/2.8" CMOS 0.3X

HD1500MET

HDMI/USB 2.0 Color 2-6MP 3264 x 1840 Static
1920 x 1080 Dynamic
60fps by HDMI
30fps by USB 2.0
1/2.8" CMOS 0.3X

HD1500MET-M
with 11.8" HDMI montior

HDMI/USB 2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

60fps by HDMI
30fps by USB 2.0
1/2.8" CMOS 0.3X

HD1500MET-AF
(Autofocus/Continuous 1-shot)

HDMI/USB2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

60fps by HDMI
30fps by USB 2.0
1/2.8" CMOS 0.3X

HD1500MET-M-AF
(Autofocus/Continuous 1-shot/with 11.8" monitor)

HDMI/USB2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

60fps by HDMI
30fps by USB 2.0
1/2.8" CMOS 0.3X

HD1000-LITE

HDMI/USB 2.0 Color 5MP

2592 x 1944

15fps by HDMI
15fps by USB 2.0

1/2.5" CMOS

0.3X

HD1000-LITE-M
with 11.8" HDMI montior

HDMI/USB 2.0 Color 5MP

2592 x 1944

15fps by HDMI
15fps by USB 2.0

1/2.5" CMOS

0.3X

HD1600T

USB 3.0 Color 16MP 4608 x 3456

25fps by USB 3.0

1/2.33" CMOS

0.3X

SS500-MC

Wifi Color 5MP 2912 x 1640 60fps by Wifi 1/2.3" CMOS 0.3X

WF300
Eyepiece Camera

Wifi Color 8MP 3200 x 2400 60fps by USB 2.0
30fps by Wifi
1/2.8" CMOS 20-43mm
Eyepiece Mount

WF200

Wifi Color 5MP 2592 x 1944 40fps by USB 2.0
15fps by Wifi
1/2.8" CMOS 0.3X

WF100
Document Scanner

Wifi Color 5MP 2592 x 1944 30fps by Wifi - -

X-1000U

USB 2.0 Color 5MP 2592 x 1911 10fps by USB 2.0 1/2.8" CMOS 0.3X

MIS-PL-DV24

USB 2.0 Color 2MP 1600 x 1200 30fps by USB 2.0 1/2" CMOS 0.5X

DK-LITE-B

USB 2.0 Color 1.5MP 1440 x 1080 10fps by USB 2.0 1/2.5" CMOS 0.5X

DK1000CB

USB 2.0 Color 2MP 1600 x 1200 15fps by USB 2.0 1/2" CMOS 0.5X

DK1000M

USB 2.0 Monochrome 1.3MP 1280 x 1024 30fps by USB 2.0 1/2" CMOS 0.5X

DK3000C

USB 2.0 Color 3.1MP 2048 x 1536 12fps by USB 2.0 1/2" CMOS 0.5X

DK5000C

USB 2.0 Color 5MP 2592 x 1944 5fps by USB 2.0 1/2.5" CMOS 0.7X

HD2000C

USB 2.0 Color 2MP 1920 x 1080 60fps by USB 2.0 1/3" CMOS 0.3X

ST1000C

USB 3.0 Color 5MP 2592 x 1944 60fps by USB 3.0 1/2.5" CMOS 0.5X

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support:
 1-(800) 832-0060 (U.S.A Based)

Packaging Information
• Weight:

• Box Dimensions:


Details

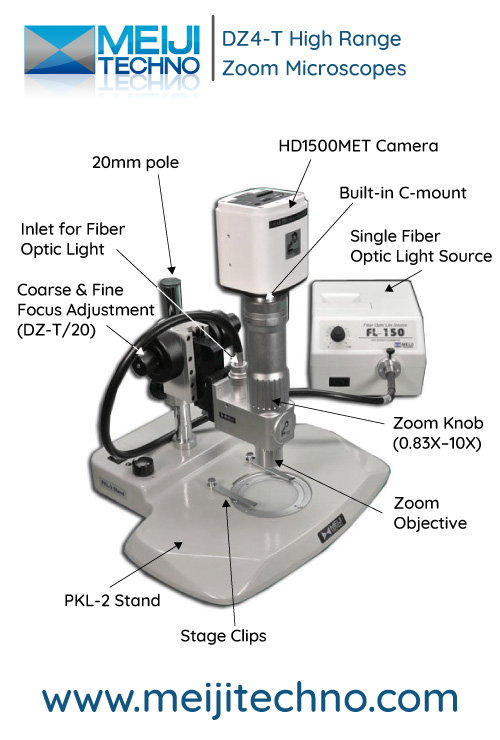

The DZ4-T is Meiji Techno’s highest magnification zoom system in our product line. Viewing samples on a monitor without eyepieces is now easily achievable with the DZ4-T system. You can connect cameras that can be used independently or connect to HDMI monitors or computers with measurement capabilities. It has a zoom ratio of 12:1 and stepless magnification change from 25.2X to 4200X with changing objective. This system has a built-in C-mount lens system that accommodates 1/2" CMOS, CCD or analog cameras in the market. It provides a very high and clear resolution that displays a crisp picture on any monitor. The DZ4-T can be ordered with a focus mechanism that fits a 38mm (1.50") post or a 20mm (0.78") post stand. It has an integrated single arm fiber optic coaxial reflected illumination with choices of Halogen or LED light sources. The system can be equipped with a reflected or transmitted light stage that accommodates the Mitutoyo digimatic indicators for X, Y or Z accurate measurement capabilities. The DZ4-T has the ability to reach different viewing positions quickly at low magnification and magnifies images effortlessly. It can be used with various types of illuminations and has a wide application range.

Features:
• Superb Japanese Optical Quality and Craftmanship
• 12:1 (0.83X to 10X) Zoom Ratio
• 25.2X to 4200X Total magnification (with the appropriate objectives)
• Coaxial reflected illumination
• Built-in C-mount for 1/2" CMOS, CCD or Analog cameras
• Lightweight and compact
• Modular to be fitted OEM applications
• Many versatile configurations available

Details

Components & Accessories

BODY
• DZ4-T: Zoom microscope body, Zoom Ratio 12:1 (0.83X – 10X)
• FC/DZ4-T: Zoom microscope body, Zoom Ratio 12:1 (0.83X – 10X) with DZ-T/20 focus block
• MC/DZ4-T: Zoom microscope body, Zoom Ratio 12:1 (0.83X – 10X) with DZ-T/38 focus block

FOCUS BLOCK
• DZ-T/20: Coarse and fine focus block (Fits 20mm mounting post)
• DZ-T/38: Coarse and fine focus block (Fits 38mm mounting post) (For MAC-10 and MAC-11)

OBJECTIVES
• ZC5: 0.42X – 5X objective ∞, 25.2X – 300X total mag, N.A. 0.01 – 0.07, W.D. 45mm
• ZC15: 1.25X – 15X objective ∞, 75X – 900X total mag, N.A. 0.03 – 0.2, W.D. 46.2mm
• ZC30: 2.5X – 30X objective ∞, 150X – 1800X total mag, N.A. 0.06 – 0.36, W.D. 35.25mm
• ZC50: 4.16X – 50X objective ∞, 249.6X – 3000X total mag, N.A. 0.1 – 0.45, W.D. 14mm
• ZC70: 5.83X – 70X objective ∞, 349.8X – 4200X total mag, N.A. 0.14 – 0.7, W.D. 7.1mm

STANDS
• P/SP-1: Pole type stand, reversible white and black stage plate, two stage clips (8.35" pillar)
• PK/SP-1: Pole type stand, reversible white and black stage, plate two stage clips (10" pillar)
• PX/SP-1: Pole type stand, illuminator port, reversible white and black stage plate, two stage clips (10" pillar)
• PBH/SP-1: Pole type stand, transmitted illumination, variable-intensity halogen 6V 10W, reversible white and black stage plate, clear glass stage plate, two stage clips (8.35" pillar)
• PKL-2/SP-1: Pole type stand, transmitted illumination, variable intensity controls, white stage plate, two stage clips (10" pillar)
• PLS-2/SP-2: Pole type stand, transmitted illumination, variable-intensity controls, white stage plate, two stage clips (8.38" pillar)
• MA551: 4" extension pillar aluminum with threads

WIDE SURFACE LAMINATE STANDS:
• KBL/3: Medium stand with 15" x 13" base with 20mm post
• MU: Medium universal stand with crossarm, 15 3/4" x 18 7/8" base
• SBU: Large universal stand with crossarm, 22 1/3" x 19 ¼" base
• UL: Large universal stand with rotatable stand for light source, 22 1/3" x 19 ¼"

HEAVY DUTY STAND
• MAC-10: Heavy duty stand with 38mm post, 11" x 13" surface board
• MAC-11: Heavy duty stand with 38mm post and mounting bracket with 96.5mm diameter recess mounting surface hole

STAGES
• MA564: Graduated mechanical stage for EM Series stands (incident light)
• MA564/05: Graduated mechanical stage with glass plate for EM Series stands (transmitted and incident light)
• MA565: Ungraduated (wafer) mechanical stage for EM Series stands (incident light)
• MA565/05: Ungraduated (wafer) mechanical stage with glass plate for EM Series (transmitted and incident light)
• MA728: Reflected light measuring stage: 150mm x 150mm with 50mm X – Y or 6" x 6" with 2" X – Y movement
• MA729: Reflected and Transmitted light measuring stage: 150mm x 150mm with 50mm X – Y or 6" x 6" with 2" X – Y movement with glass stage plate and mounting brackets for digital micrometer heads

DIGIMATIC INDICATORS
• MTI164-164: Mitutoyo Digimatic Indicator for X – Y axis movement: Range 50mm (2") (2 Required) (Fits into MA728 and MA729 port)
• MTI959149: Data Transfer Cable for MTI164-164 to MTI542-007A or MTIEH-542-072A
• MTI543-392: Mitutoyo Digimatic Indicator (lug back) for Z-axis movement: Range 12.7mm (0.5") (1 Required) (MA721 is required) (Mounts on FU-1010 block)
• MTI905689: Data Transfer Cable for MTI543-392 to MTI542-007A or MTIEH-542-072A
• MA721: 1.5" (38mm) Extension rod for Z-axis digital indicator (Required for MTI543-392)
• MA807: Mounting brackets for digital Z-axis indicator (Included with FU1010)
• MTI542-007A: EC Counter Assembly Type Display Unit with one channel, for MTI164-164 (MTI959149 is required) or MTI543-392 (MTI905689 is required)
• MTIEH542-072A: EH Counter Multi-Function Display Unit with two channels, for MTI164-164 (MTI959149 is required) and/or MTI543-392 (MTI905689 is required)

ILLUMINATORS
• FL150/95: Single arm light guide (36" flexible), 4.75mm (0.18") diameter fiber optic bundle
• FT190/05: Dual arm flexible light guide, (23" self-supporting) with 8mm diameter active fiber optic bundle (Requires FT190/50 lens)
• FT190/50: Focusing lens, 28mm focal length (For use with FT190/05, FT190/06, FT190/75)
• FL150/115: Fiber Optic Light Source: 110/120V, 50/60Hz, halogen lamp, 21V, 150W with variable rheostat
• FL150/200: Fiber Optic Light Source: 220/240V, 50/60Hz, halogen lamp, 21V, 150W with variable rheostat
• FT190/115: Fiber Optic Light Source: 110/120V, 50/60Hz, halogen lamp, 21V, 150W with variable rheostat
• FT190/230: Fiber Optic Light Source: 220/240V, 50/60Hz, halogen lamp, 21V, 150W with variable rheostat
• FL-5000-US-B1: Fiber Optic Light Source: LED Power Supply only with 15mm (0.590") Fiber Input Diameter - 110/240V
