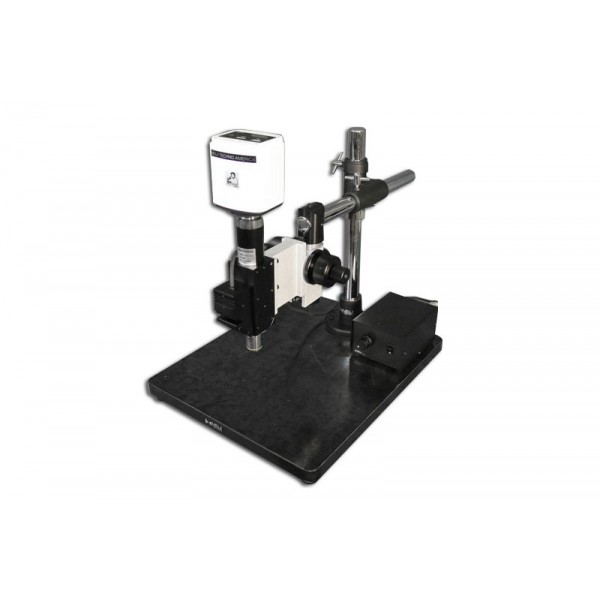

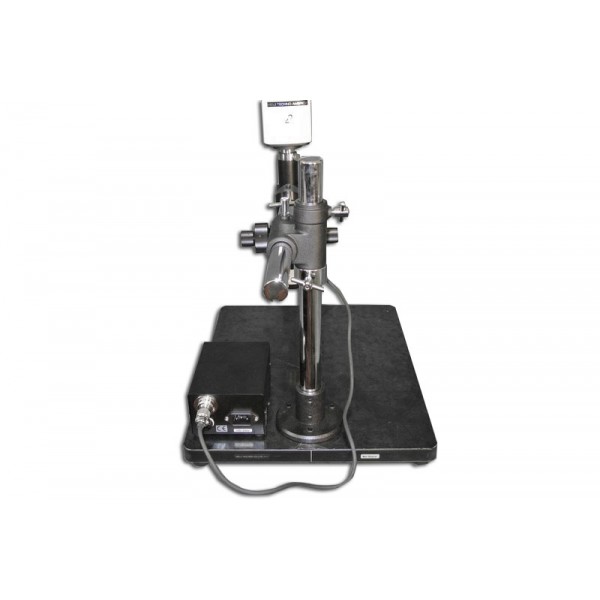

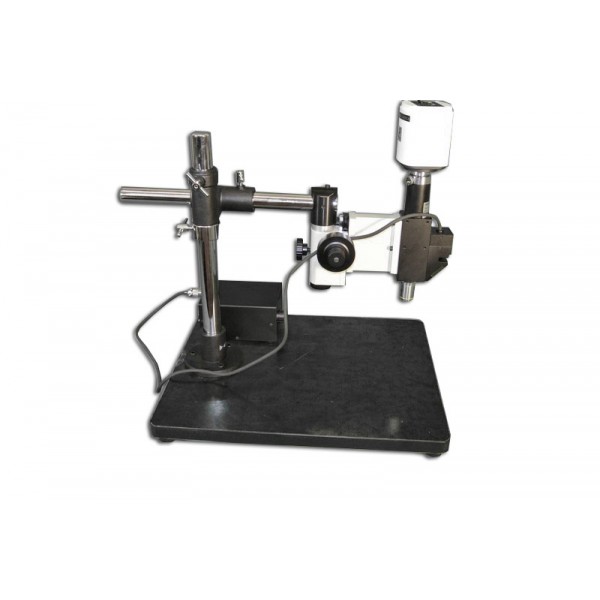

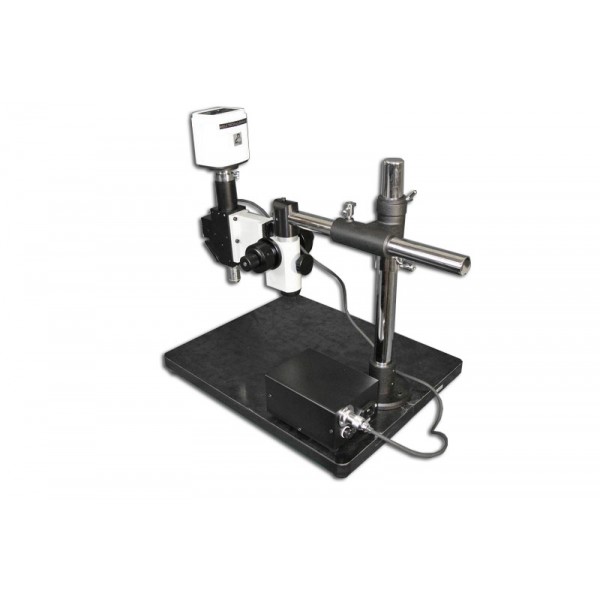

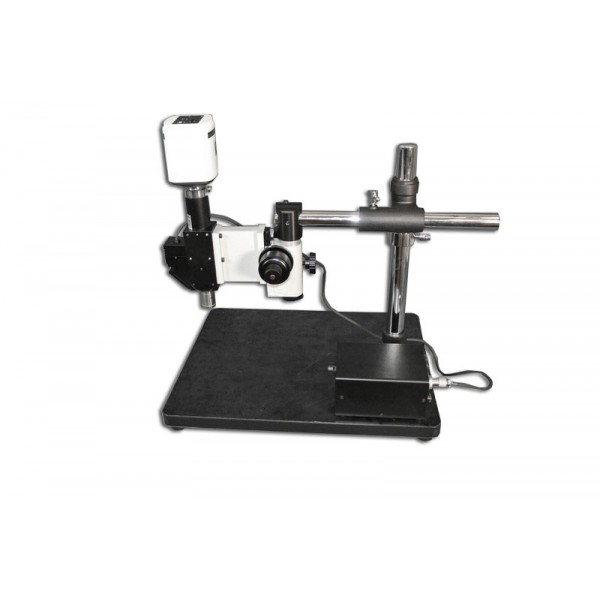

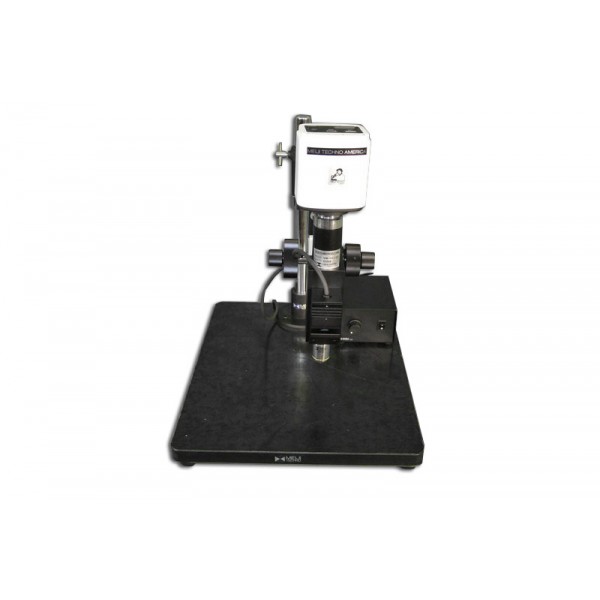

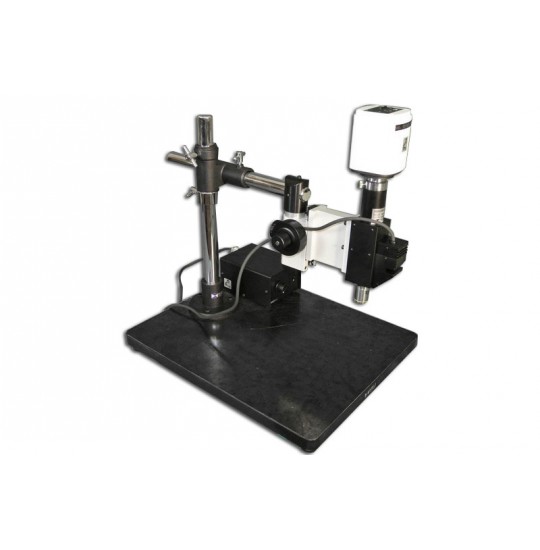

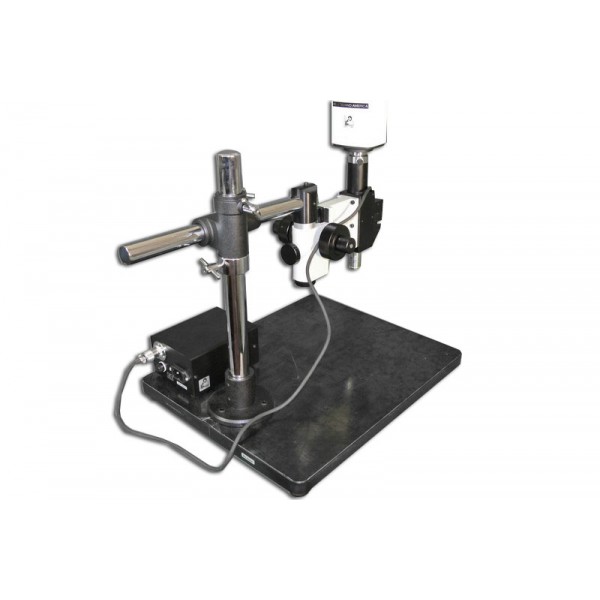

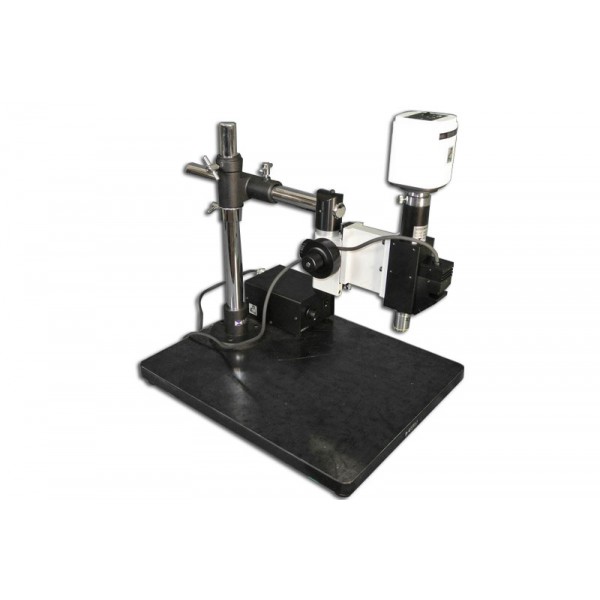

VM-1V-LED + MA871 + VM-MU + HD1500T - 1X with Vertical C-mount Video Microscope Configuration

The VM and VM-LED Series high resolution video microscopes have been specifically designed for viewing small electronic components, wave-guides, electro-mechanical assemblies, medical devices, seals, fibers, catheters, etc., which require high magnification visual inspection. The VM and VM-LED Series integrate a CCD video camera, fiber optic illumination system, and high-resolution infinity corrected optics. The series are ideal for use in factory automation and machine vision systems.

The VM-1V-LED in this configuration is a video microscope with a 1X magnification factor and has a vertical C-mount. The objective lens included is a MA871 Plan Achromat Epi 10X metallurgical objective lens. The base stand, VM-MU, is a wide surface laminate stand that includes a coarse and fine focus block (VM-FB) for the VM and VM-LED Video Microscopes. It has the base dimension of 350mm X 410mm X 30mm with VM-FB coarse and fine focus block. All non LED VM Series require one external light source and light guide FT190/115 or FL150/115 and FL150/95 light guide.

The HD1500T is our full featured 6 MP camera with a 1/3” CMOS chip. The HD1500T features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI, so there is absolutely no lag in the live video feed when moving your specimen or part.

The HD1500T can be mounted directly to any HDMI monitor or PC via USB 2.0 or HDMI connectivity and can be used with the provided USB 2.0 mouse, with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature plus allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached its magnification potential, this will give you the added digital magnification needed. You can also superimpose a cross-line reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. The live video and still shots can be saved directly on the removable full SD card for subsequent image capture. All this is achieved without the need for a PC.

NOTE:
• 6MP Still resolution 3264x1836
• 2MP Live video 1920x1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920x1080 30 fps (frames per second) via USB2.0

NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered:
• VM or VM-LED Series Video Microscope
• Brightfield Plan or LWD Plan Objectives (Long Working Distance)
• Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, LED illumination)
• CCD or CMOS Camera



Made In Japan


Locate a DealerGet a Quote


VM-1V-LED + MA871 + VM-MU + HD1500T

VM-1V-LED Info:

Video microscope, 1X magnification factor, with vertical C-mount

VM-FB Info:

Coarse and Fine focus block for VM Series, fits 20mm diameter mounting pole

MA871 Info:

Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48mm, F.N. 24

VM-MU Info:

Universal Pole type wide surface laminate Stand with 350mm x 410mm x 30mm base, crossarm and mounting post mounted with focus block for VM Series, (VM-FB) fits 20mm diameter pole with rotatable Fiber Optic Tray, best for large specimens

HD1500T Info:
   • HD1500T Camera
   • HDMI Cable
   • USB Cable
   • 12V AC/DC Power adapter
   • SD Card
   • Mouse
   • Application Software ISCapture
   • Packing Box

Package Information:
   • 5lbs
   • 12 x 10 x 4 inches

NEW: BUILT-IN MOUSE CONTROL CAMERA
The significant innovation of the HD15000T is making the software implant inside the camera. This forward thinking feature frees users from cumbersone computers and annoying buttons. You can control the camera by only a mouse directly.

01

Videos of the camera in action with our microscopes:
Brief overview with the compare feature
With Darkfield microscopy.



PERFECT COLOR REPRODUCTION
Meiji Techno's HD technology offers true-to-life reproduction oh image color. What you see on the monitor is what you get from the microscope eyepiece. No compressed date transmission, resulting in scientific-grade images.

02

1080P 60FPS FULL FRAME RATES
With 60fps at 1080p, the HD1500T presents a perfect combination of outstanding resolution and frame rate. This allows the user to fluently manipulate the live images without any lags.

03

HDMI+USB 2.0+SD OUTPUT
Multiple output options are available for this powerful HDMI camera. HDMI 1080P, USB 2.0, or SD memory card can be used individually or all three SIMULTANEOUSLY.

03

DUAL FPGA PROCESSORS
With an innovative Dual FPGA processor architecture design, FPGA1 for image quality processing and FPGA2 for image output control, you get a high-speed preview without sacrificing image quality. It is the most powerful camera you deserve to have.

05

SMART PRESENTATION
Camera parameters such as exposure time, white balance, and gain are designed by default to operate automatically. Automatic optimum configuration is expected to be done in 0.015 seconds, and you'll find that the camera is easily managed from the start.

06

ADVANCED PARAMETER SETTING
For users with specific requirements, the camera is designed with parameter setting buttons that enable manual adjustment of white balance, gain, saturation, Gamma and screen freeze.

07

PC TO TV
Images are displayable on PCs and HDMI-installed TVs. All parameters can be controlled by the computer to adjust them to actual situations. This is advantageous in teaching and meeting applications.

08

On-board Video Saving
The SD card can save not only still images, but also dynamic images in 720P color definition, such that motion trails are recorded in fast speed and intact form.

09

LOW LIGHT SENSITIVITY
Thanks to its highly sensitive sensor, the HD1500T is capable of capturing low-light images rapidly. In darkfield imaging and even fluorescence, it will automatically increase the sensitivity, presenting low light images with clarity in high-speed preview mode.

10

Model
Type
Version
Mega Pixels
Resolution
Frame Rate (FPS)
Sensor
C" Mount

HD1500T

 HDMI/USB 2.0 Color 2-6MP 3264 x 1840 Static
1920 x 1080 Dynamic		 60fps by HDMI
30fps by USB 2.0		 1/2.8" CMOS 0.3X

HD1500TM
with 11.8" HDMI montior

 HDMI/USB 2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

 60fps by HDMI
30fps by USB 2.0		 1/2.8" CMOS 0.3X

HD1500MET

 HDMI/USB 2.0 Color 2-6MP 3264 x 1840 Static
1920 x 1080 Dynamic		 60fps by HDMI
30fps by USB 2.0		 1/2.8" CMOS 0.3X

HD1500MET-M
with 11.8" HDMI montior

 HDMI/USB 2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

 60fps by HDMI
30fps by USB 2.0		 1/2.8" CMOS 0.3X

HD1500MET-AF
(Autofocus/Continuous 1-shot)

 HDMI/USB2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

 60fps by HDMI
30fps by USB 2.0		 1/2.8" CMOS 0.3X

HD1500MET-M-AF
(Autofocus/Continuous 1-shot/with 11.8" monitor)

 HDMI/USB2.0 Color 2-6MP

3264 x 1840 Static
1920 x 1080 Dynamic

 60fps by HDMI
30fps by USB 2.0		 1/2.8" CMOS 0.3X

HD1000-LITE

 HDMI/USB 2.0 Color 5MP

2592 x 1944

15fps by HDMI
15fps by USB 2.0

1/2.5" CMOS

0.3X

HD1000-LITE-M
with 11.8" HDMI montior

 HDMI/USB 2.0 Color 5MP

2592 x 1944

15fps by HDMI
15fps by USB 2.0

1/2.5" CMOS

0.3X

HD1600T

 USB 3.0 Color 16MP 4608 x 3456

25fps by USB 3.0

1/2.33" CMOS

0.3X

SS500-MC

 Wifi Color 5MP 2912 x 1640 60fps by Wifi 1/2.3" CMOS 0.3X

WF300
Eyepiece Camera

 Wifi Color 8MP 3200 x 2400 60fps by USB 2.0
30fps by Wifi		 1/2.8" CMOS 20-43mm
Eyepiece Mount

WF200

 Wifi Color 5MP 2592 x 1944 40fps by USB 2.0
15fps by Wifi		 1/2.8" CMOS 0.3X

WF100
Document Scanner

 Wifi Color 5MP 2592 x 1944 30fps by Wifi - -

X-1000U

 USB 2.0 Color 5MP 2592 x 1911 10fps by USB 2.0 1/2.8" CMOS 0.3X

MIS-PL-DV24

 USB 2.0 Color 2MP 1600 x 1200 30fps by USB 2.0 1/2" CMOS 0.5X

DK-LITE-B

 USB 2.0 Color 1.5MP 1440 x 1080 10fps by USB 2.0 1/2.5" CMOS 0.5X

DK1000CB

 USB 2.0 Color 2MP 1600 x 1200 15fps by USB 2.0 1/2" CMOS 0.5X

DK1000M

 USB 2.0 Monochrome 1.3MP 1280 x 1024 30fps by USB 2.0 1/2" CMOS 0.5X

DK3000C

 USB 2.0 Color 3.1MP 2048 x 1536 12fps by USB 2.0 1/2" CMOS 0.5X

DK5000C

 USB 2.0 Color 5MP 2592 x 1944 5fps by USB 2.0 1/2.5" CMOS 0.7X

HD2000C

 USB 2.0 Color 2MP 1920 x 1080 60fps by USB 2.0 1/3" CMOS 0.3X

ST1000C

 USB 3.0 Color 5MP 2592 x 1944 60fps by USB 3.0 1/2.5" CMOS 0.5X

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Packaging Information:
   • Weight: ~25lbs
   • Box Dimensions: 18" x 15" x 18"

Details

The VM Series features include:

  • Outstanding high-resolution images
  • Wide range of objectives available from 2.5X to 100X
  • Single objective port or add optional triple or quadruple nosepieces
  • On screen video magnifications from less than 40X to 5500X or more
  • Accepts infinity corrected objectives with RMS thread with 200mm focal length
  • Compact sized pole stand with coarse and fine focus available
  • Rugged aluminum housing
  • Mountable on flat surfaces for simple integration and machine vision applications
  • Convenient field portability possible with self powered camera and light source
  • Fiber optic coaxial "cool light" illumination systems with field iris available
  • Illuminator port accepts optional drop-in mounted filters
  • Many useful accessories and configurations possible



VM & VM-LED Microscopes:
The VM & VM-LED Series high resolution video microscopes have been specifically designed for viewing small electronic components, wave-guides, electro-mechanical assemblies, medical devices, seals, fibers, catheters, etc., which require high magnification visual inspection. The VM & VM-LED Series integrate a CCD video camera, fiber optic illumination system, and high-resolution infinity corrected optics, and are ideal for use in factory automation and machine vision systems.

The VM & VM-LED Series “C” Mount video microscopes connects an infinity corrected objective to a “C” Mount camera to create a simple high magnification imaging system. The VM & VM-LED Series units are mountable to the VM focus block or other flat mouthing surface via four M4 X M6 threaded mouthing holes with 30mm X 40mm spacing. The VM & VM-LED Series have a parfocal distance of 45mm and accepts Din Standard 0.7965” (20.1mm) diameter threaded objectives.

Details

Components & Accessories

VM SERIES MICROSCOPES (SINGLE NOSEPIECE)
• VM-1V: Video microscope, 1X magnification factor, with vertical C-mount
• VM-1H: Video microscope, 1X magnification factor, with horizontal C-mount
• VM-1D: Video microscope, 1X magnification factor, with vertical and horizontal C-mount
• VM-2V: Video microscope, 0.5X magnification factor, with vertical C-mount

All non LED VM Series require one external light source and light guideFT190/115 or FL150/115 and FL150/95 light guide

VM-LED SERIES MICROSCOPES (SINGLE NOSEPIECE)
• VM-1V-LED: Video microscope, 1X magnification factor, with vertical C-mount
• VM-1H-LED: Video microscope, 1X magnification factor, with horizontal C-mount
• VM-1D-LED: Video microscope, 1X magnification factor, with vertical and horizontal C-mount
• VM-2V-LED: Video microscope, 0.5X magnification factor, with vertical C-mount

All LED models include separate transformer with variable intensity control AC power cord with UL plug triple or quadruple nosepiece may be added to VM or VM-LED and are quoted upon request

BRIGHTFIELD PLAN EPI OBJECTIVES
• MA870: Plan Epi Objective 5X, N.A. 0.10, W.D. 20.0mm, F.N. 24
• MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48mm, F.N. 24
• MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20mm, F.N. 24
• MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24
• MA874: Plan Epi Objective 100X, N.A. 0.90, W.D. 0.37mm, F.N. 24

BRIGHTFIELD LWD PLAN EPI OBJECTIVES (Long working distance)
• MA920: LWD Plan Epi Objective 20X, N.A. 0.40, W.D. 11.0mm, F.N. 24
• MA921: LWD Plan Epi Objective 50X, N.A. 0.55, W.D. 7.5mm, F.N. 24

FILTER SETS FOR VM-LED SERIES - (METAL MOUNT O.D. 18MM)
• MA754: LB100, blue clear filter in mount for use with VM and VM LED video microscope
• MA755: G533, green clear filter in mount for use with VM and VM LED video microscope
• MA756: Y48, yellow clear filter in mount for use with VM and VM LED video microscope
• MA757: ND 50, neutral density filter in mount for use with VM and VM LED video microscope
• MA758: ND 13, neutral density filter in mount for use with VM and VM LED video microscope

150 WATT ILLUMINATORS FOR STANDARD VM SERIES
• FT190/115: Fiber optic light source, 115VAC, US cord, EKE lamp, requires FL150/95
• FL150/115: Fiber optic light source, 115VAC, US cord, EKE lamp, requires FL150/95
• FL150/95: Single arm light guide, flexible 36" for use with VM Series video microscope (7.9mm diameter at VM end, 15mm diameter at FL150/115 end)
• FL150/70: Replacement Halogen bulb, 21V 150W, for FL150/100 or FL150/200

MICROSCOPE STAND WITH FOCUS BLOCK
• VM-FB: Coarse and Fine focus block for VM Series, fits 20mm diameter mounting pole
• VM-PC: Pole type stand with coarse and fine focus block for VM-LED Series video microscopes
• VM-PK: Wide ergonomic Pole type stand with reversible white and black stage plate, two stage clips (10" pillar), base: 330mm (12.99") wide x 280mm (11") deep with Focus block for VM Series (VM-FB), fits 20mm diameter mounting pole
• VM-KBL: Universal Pole type wide surface laminate Stand with 380mm x 330mm x 20mm base, 20mm post mounted with Focus block for VM Series, (VM-FB) fits 20mm diameter pole.
• VM-SBU: Universal Pole type wide surface laminate Stand with 580mm x 500mm x 38mm base, crossarm and mounting post mounted with Focus block for VM Series, (VM-FB) fits 20mm diameter pole. Best for large specimens
• VM-UL: Universal Pole type wide surface laminate Stand with 580mm x 500mm x 38mm base, crossarm and mounting post mounted with focus block for VM Series, (VM-FB) fits 20mm diameter pole with rotatable Fiber Optic Tray, best for large specimens
• VM-MU: Universal Pole type wide surface laminate Stand with 350mm x 410mm x 30mm base, crossarm and mounting post mounted with focus block for VM Series, (VM-FB) fits 20mm diameter pole with rotatable Fiber Optic Tray, best for large specimens

DIGITAL C-MOUNT CAMERA FOR USB 2.0 & HDMI INTERFACE
• HD1000-LITE: 5MP/15fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD
• HD1000-LITE-M: 5MP/15fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor
• HD1500MET: 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, metric software CD
• HD1500MET-M: 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, metric software CD, 11.6 HDMI monitor
• HD1500T: 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD
• HD1500TM: 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor
